| Washer Style Thermocouples Made with glass insulated wire (GG). Other insulations and Stainless Steel overbraid (OBS) are also available. |
|||||||
| Catalog Number | Type | Washer OD (In) |
Washer OD (mm) |
Washer ID (In) |
Washer ID (mm) |
Fits Screw/Bolt |
Construction |
| 20E4WSGG260-* | E | .575 | 14.61 | .260 | 6.60 | #12 to 1/4" |
|
| 20E4WSGG210-* | E | .470 | 11.94 | .210 | 5.33 | #6 to #8 | |
| 20E4WSGG200-* | E | .610 | 15.49 | .200 | 5.08 | #6 to #10 | |
| 20J4WSGG260-* | J | .575 | 14.61 | .260 | 6.60 | #12 to 1/4" | |
| 20J4WSGG210-* | J | .470 | 11.94 | .210 | 5.33 | #6 to #8 | |
| 20J4WSGG200-* | J | .610 | 15.49 | .200 | 5.08 | #6 to #10 | |
| 20K4WSGG260-* | K | .575 | 14.61 | .260 | 6.60 | #12 to 1/4" | |
| 20K4WSGG210-* | K | .470 | 11.94 | .210 | 5.33 | #6 to #8 | |
| 20K4WSGG200-* | K | .610 | 15.49 | .200 | 5.08 | #6 to #10 | |
| 20T4WSGG260-* | T | .575 | 14.61 | .260 | 6.60 | #12 to 1/4" | |
| 20T4WSGG210-* | T | .470 | 11.94 | .210 | 5.33 | #6 to #8 | |
| 20T4WSGG200-* | T | .610 | 15.49 | .200 | 5.08 | #6 to #10 | |
| * Insert length, 2 inch leads are standard. | |||||||

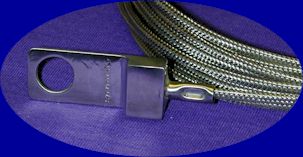

Custom Washer & Lug Style Thermocouples  Need a special washer of lug style thermocouple? Send us a print and we will machine them for you. |
