FUSED
QUARTZ TUBING (QT)-Open both ends (OBE)
FUSED QUARTZ TUBES
(QZ)-Closed one end, plain open end having:
no
Bushing, Collar, Coupling, Nipple, or, Fitting
Special lengths available on request
FUSED QUARTZ TUBES (QZ)-Closed one
end having:
Compression
Fitting - "CF" Compression
Fitting
Fitting
- "F" Fitting
on open end
Hex Fitting -
"HX" Hex
Fitting on open end
Nipples,
Close - "NC" Close
nipple on open end
Nipple, Sleeve
- "N9"
Metal Sleeve on open end
Nipple, Space
-
"N"
Space Nipple on open end
Also ask us about quartz disks
Note: Items in tables listed in bold red are regular quartz.
FUSED
QUARTZ TUBING-Open
both ends (OBE)
Links
to tubing items on this page in order
by: Outside Diameter
(O.D.)
by: Inside Diameter
(I.D.)
O.D.
1 mm to 7 mm
I.D. 1 mm to 5
mm
O.D.
8 mm to 11 mm
I.D. 6 mm to 9
mm
O.D.
12 mm to 18 mm
I.D.
10 mm to 15 mm
O.D.
19 mm to 29 mm
I.D. 16 mm to 25 mm
O.D.
30 mm to 56 mm
I.D. 26 mm
to 50 mm
O.D.
57 mm to 100 mm
I.D. 51 mm to 100 mm
O.D.
101 mm to 179 mm
I.D. 101 mm to 170 mm
O.D.
180 mm to 239 mm
I.D. 171 mm to 230 mm
O.D.
240 mm to 320 mm
I.D.
231 mm to 320 mm
Back
to top
FUSED
QUARTZ TUBES-Plain one end, closed one end
Links
to tubing items on this page in order
by: Outside Diameter
(O.D.)
by: Inside Diameter (I.D.)
O.D.
1 mm to 7 mm
I.D. 1 mm to
5 mm
O.D.
8 mm to 11 mm
I.D. 6 mm to
9 mm
O.D.
12 mm to 18 mm
I.D. 10 mm to 15
mm
O.D.
19 mm to 28 mm
I.D. 16 mm to 25
mm
O.D.
29 mm to 56 mm I.D.
26 mm to 50 mm
O.D.
57 mm to 100 mm
I.D. 51 mm to 100 mm
O.D.
101 mm to 179 mm
I.D. 101 mm to 170 mm
O.D.
180 mm to 239 mm
I.D. 171 mm to 230 mm
O.D.
240 mm to 320 mm
I.D. 231 mm to 320 mm

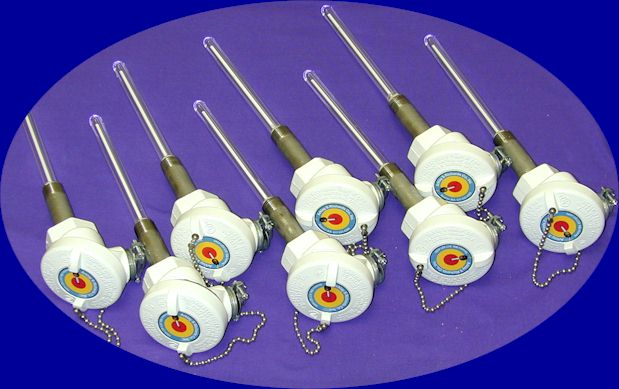

Also ask us about thermocouple assemblies with quartz protection tubes
| FUSED
QUARTZ TUBES (QZ) - Closed end, and Compression Fitting "CF" Specify tube length " * "  |
| Part number | INCHES | MILLIMETERS | |||||||
| OD | ID | Wall | Lengths to | OD | ID | Wall | Lengths to | Tube O.D. x Thread | |
| QZ030010CF-* QZ06.35040CF-* QZ096070CF-* QZ12.7510.5CF-* QZ158130CF-* |
.1181 .2500 .3780 .5020 .6220 |
.0394 .1575 .2756 .4134 .5118 |
.0394 .0463 .0512 .0443 .0551 |
48 48 48 48 48 |
3.00 6.35 9.60 12.75 15.80 |
1.00 4.00 7.00 10.50 13.00 |
1.000 1.175 1.300 1.125 1.400 |
1219.2 1219.2 1219.2 1219.2 1219.2 |
1/8" x 1/8" NPT 1/4" x 1/8" NPT 3/8" x 1/2" NPT 1/2" x 1/2" NPT 5/8" x 3/4" NPT |
| FUSED
QUARTZ TUBES (QZ) - Closed end, and Fitting "F" Specify tube length " * "  |
| Part number | INCHES | MILLIMETERS | |||||||
| OD | ID | Wall | Lengths to | OD | ID | Wall | Lengths to | Fitting (NPT) | |
| QZ170150F-* QZ250220F-* QZ320280F-* |
.6693 .9843 1.2598 |
.5906 .8671 1.2598 |
.0394 .0591 .0787 |
48 48 48 |
17.00 25.00 32.00 |
15.00 22.00 28.00 |
1.000 1.500 2.000 |
1219.2 1219.2 1219.2 |
3/4"
x 1/2" 1" x 3/4" 1 1/2" x 1" |
| FUSED
QUARTZ TUBES (QZ) - Closed end, and Fitting "HX" (Hexagonal
fitting) Specify tube length " * "  |
| Part number | INCHES | MILLIMETERS | |||||||
| OD | ID | Wall | Lengths to | OD | ID | Wall | Lengths to | HX NPT x NPT |
|
| QZ030010HX-* QZ040020HX-* QZ050030HX-* QZ060020HX-* QZ060040HX-* QZ06.35040HX-* QZ070050HX-* QZ072047HX-* QZ080020HX-* QZ080036HX-* QZ080040HX-* QZ080060HX-* QZ090070HX-* QZ096070HX-* QZ09.7507.75HX-* QZ099079HX-* QZ100060HX-* QZ104070HX-* QZ110060HX-* QZ118090HX-* QZ120060HX-* QZ012080HX-* QZ130040HX-* QZ140100HX-* QZ150090HX-* QZ158130HX-* QZ162130HX-* QZ180150HX-* QZ190135HX-* |
.1181 .1575 .1969 .2362 .2362 .2500 .2756 .2835 .3150 .3150 .3150 .3150 .3543 .3780 .3840 .3898 .3937 .4094 .4331 .4650 .4724 .4724 .5118 .5512 .5906 .6220 .6378 .7087 .7480 |
.0394 .0787 .1181 .0787 .1575 .1575 .1969 .1850 .0787 .1417 .1575 .2362 .2756 .2756 .3050 .3110 .2362 .2756 .2362 .3543 .2362 .3150 .1575 .3937 .3543 .5118 .5118 .5906 .5315 |
.0394 .0394 .0394 .0787 .0394 .0463 .0394 .0492 .0787 .0866 .0787 .0394 .0394 .0512 .0394 .3110 .0787 .0669 .0984 .3543 .1181 .0787 .1772 .0787 .0787 .0551 .0630 .0591 .1083 |
48 48 48 48 48 48 48 10 48 48 48 48 48 48 48 18 48 48 48 48 48 48 13 48 48 48 48 48 48 |
3.00 4.00 5.00 6.00 6.00 6.35 7.00 7.20 8.00 8.00 8.00 8.00 9.00 9.60 9.75 9.90 10.00 10.40 11.00 11.80 12.00 12.00 13.00 14.00 15.00 15.80 16.20 18.00 19.00 |
1.00 2.00 3.00 2.00 4.00 4.00 5.00 4.70 2.00 3.60 4.00 6.00 7.00 7.00 7.75 7.90 6.00 7.00 6.00 9.00 6.00 8.00 4.00 10.00 9.00 13.00 13.00 15.00 13.50 |
1.000 1.000 1.000 2.000 1.000 1.175 1.000 1.250 2.000 2.200 2.000 1.000 1.000 1.300 1.000 1.000 2.000 1.700 2.500 1.400 3.000 2.000 4.500 2.000 2.000 1.400 1.600 1.500 2.750 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 254.0 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 457.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 330.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 |
1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 1/2" x 1/2" 3/4" x 3/4" 3/4" x 3/4" |
| FUSED
QUARTZ TUBES (QZ) - Closed end, and Fitting "NC" (close
nipple) Specify tube length " * "  |
| Part number | INCHES | MILLIMETERS | |||||||
| OD | ID | Wall | Lengths to | OD | ID | Wall | Lengths to | Nipple NPT x Length |
|
| QZ030010NC-* QZ040020NC-* QZ050030NC-* QZ060020NC-* QZ060040NC-* QZ06.35040NC-* QZ070050NC-* QZ072047NC-* QZ080020NC-* QZ080036NC-* QZ080040NC-* QZ080060NC-* QZ090070NC-* QZ096070NC-* QZ09.7507.75NC-* QZ099079NC-* QZ100060NC-* QZ104070NC-* QZ110060NC-* QZ118090NC-* QZ120060NC-* QZ012080NC-* QZ130040NC-* QZ140100NC-* QZ150090NC-* QZ158130NC-* QZ162130NC-* QZ180150NC-* QZ190135NC-* QZ200160NC-* QZ205180NC-* QZ216180NC-* QZ230200NC-* QZ250220NC-* QZ258220NC-* QZ288250NC-* QZ300260NC-* QZ320280NC-* |
.1181 .1575 .1969 .2362 .2362 .2500 .2756 .2835 .3150 .3150 .3150 .3150 .3543 .3780 .3840 .3898 .3937 .4094 .4331 .4650 .4724 .4724 .5118 .5512 .5906 .6220 .6378 .7087 .7480 .7874 .8071 .8504 .9055 .9843 1.0157 1.1339 1.1811 1.2598 |
.0394 .0787 .1181 .0787 .1575 .1575 .1969 .1850 .0787 .1417 .1575 .2362 .2756 .2756 .3050 .3110 .2362 .2756 .2362 .3543 .2362 .3150 .1575 .3937 .3543 .5118 .5118 .5906 .5315 .6299 .7087 .7087 .7874 .8671 .8671 .9843 1.1811 1.2598 |
.0394 .0394 .0394 .0787 .0394 .0463 .0394 .0492 .1181 .0866 .0787 .0394 .0394 .0512 .0394 .0394 .0787 .0669 .0984 .0551 .1181 .0787 .1772 .0787 .0787 .0551 .0630 .0591 .1083 .0787 .0492 .0709 .0591 .0591 .0748 .0748 .0787 .0787 |
48 48 48 48 48 48 48 10 48 48 48 48 48 48 48 18 48 48 48 48 48 48 13 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 |
3.00 4.00 5.00 6.00 6.00 6.35 7.00 7.20 8.00 8.00 8.00 8.00 9.00 9.60 9.75 9.90 10.00 10.40 11.00 11.80 12.00 12.00 13.00 14.00 15.00 15.80 16.20 18.00 19.00 20.00 20.50 21.60 23.00 25.00 25.80 28.80 30.00 32.00 |
1.00 2.00 3.00 2.00 4.00 4.00 5.00 4.70 2.00 3.60 4.00 6.00 7.00 7.00 7.75 7.90 6.00 7.00 6.00 9.00 6.00 8.00 4.00 10.00 9.00 13.00 13.00 15.00 13.50 16.00 18.00 18.00 20.00 22.00 22.00 25.00 26.00 28.00 |
1.000 1.000 1.000 2.000 1.000 1.175 1.000 1.250 3.000 2.200 2.000 1.000 1.000 1.300 1.000 1.000 2.000 1.700 2.500 1.400 3.000 2.000 4.500 2.000 2.000 1.400 1.600 1.500 2.750 2.000 1.250 1.800 1.500 1.500 1.900 1.900 2.000 2.000 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 254.0 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 457.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 330.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 |
1/8 x
7/8" 1/8 x 7/8" 1/8 x 7/8" 1/8 x 7/8" 1/8 x 7/8" 1/4 x 7/8" 1/4 x 7/8" 1/4 x 7/8" 1/4 x 7/8" 1/4 x 7/8" 1/4 x 7/8" 1/4 x 7/8" 3/8 x 1" 3/8 x 1" 3/8 x 1" 3/8 x 1" 3/8 x 1" 3/8 x 1" 3/8 x 1" 3/8 x 1" 1/2 x 1 3/16" 1/2 x 1 3/16" 1/2 x 1 3/16" 1/2 x 1 3/16" 1/2 x 1 3/16" 1/2 x 1 3/16" 1/2 x 1 3/16" 3/4 x 5/16" 3/4 x 5/16" 1 x 1 1/2" 1 x 1 1/2" 1 x 1 1/2" 1 x 1 1/2" 1 x 1 1/2" 1 1/4 x 1 5/8" 1 1/4 x 1 5/8" 1 1/4 x 1 5/8" 1 1/4 x 1 5/8" |
FUSED
QUARTZ TUBES (QZ) - Closed end, and alloy 600
sleeve "N9". 6 inch (152.4 mm), threaded one end, standard.
For a different length sleeve, change "N9" to "N9AX"
where "X" is the length of the sleeve. Example:
N9A8 would be an 8 inch (203.2 mm) sleeve. Other alloys are
also available change "9" to "6" for alloy 601, to
"8" for 306SS, to "7" for 446SS, to "16"
for 316SS, etc. Specify tube length "*".  |
| Part number | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths to | OD | ID | Wall | Lengths to | Sleeve NPT x Length |
|
| QZ030010N9-* QZ040020N9-* QZ050030N9-* QZ060020N9-* QZ060040N9-* QZ06.35040N9-* QZ070050N9-* QZ072047N9-* QZ080020N9-* QZ080036N9-* QZ080040N9-* QZ080060N9-* QZ090070N9-* QZ096070N9-* QZ09.7507.75N9-* QZ099079N9-* QZ100060N9-* QZ104070N9-* QZ110060N9-* QZ118090N9-* QZ120060N9-* QZ012080N9-* QZ130040N9-* QZ140100N9-* QZ150090N9-* QZ158130N9-* QZ162130N9-* QZ180150N9-* QZ190135N9-* QZ200160N9-* QZ205180N9-* QZ216180N9-* QZ230200N9-* QZ250220N9-* QZ258220N9-* QZ288250N9-* QZ300260N9-* QZ320280N9-* |
.1181 .1575 .1969 .2362 .2362 .2500 .2756 .2835 .3150 .3150 .3150 .3150 .3543 .3780 .3840 .3898 .3937 .4094 .4331 .4650 .4724 .4724 .5118 .5512 .5906 .6220 .6378 .7087 .7480 .7874 .8071 .8504 .9055 .9843 1.0157 1.1339 1.1811 1.2598 |
.0394 .0787 .1181 .0787 .1575 .1575 .1969 .1850 .0787 .1417 .1575 .2362 .2756 .2756 .3050 .3110 .2362 .2756 .2362 .3543 .2362 .3150 .1575 .3937 .3543 .5118 .5118 .5906 .5315 .6299 .7087 .7087 .7874 .8671 .8671 .9843 1.1811 1.2598 |
.0394 .0394 .0394 .0787 .0394 .0463 .0394 .0492 .1181 .0866 .0787 .0394 .0394 .0512 .0394 .0394 .0787 .0669 .0984 .0551 .1181 .0787 .1772 .0787 .0787 .0551 .0630 .0591 .1083 .0787 .0492 .0709 .0591 .0591 .0748 .0748 .0787 .0787 |
48 48 48 48 48 48 48 10 48 48 48 48 48 48 48 18 48 48 48 48 48 48 13 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 |
3.00 4.00 5.00 6.00 6.00 6.35 7.00 7.20 8.00 8.00 8.00 8.00 9.00 9.60 9.75 9.90 10.00 10.40 11.00 11.80 12.00 12.00 13.00 14.00 15.00 15.80 16.20 18.00 19.00 20.00 20.50 21.60 23.00 25.00 25.80 28.80 30.00 32.00 |
1.00 2.00 3.00 2.00 4.00 4.00 5.00 4.70 2.00 3.60 4.00 6.00 7.00 7.00 7.75 7.90 6.00 7.00 6.00 9.00 6.00 8.00 4.00 10.00 9.00 13.00 13.00 15.00 13.50 16.00 18.00 18.00 20.00 22.00 22.00 25.00 26.00 28.00 |
1.000 1.000 1.000 2.000 1.000 1.175 1.000 1.250 3.000 2.200 2.000 1.000 1.000 1.300 1.000 1.000 2.000 1.700 2.500 1.400 3.000 2.000 4.500 2.000 2.000 1.400 1.600 1.500 2.750 2.000 1.250 1.800 1.500 1.500 1.900 1.900 2.000 2.000 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 254.0 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 457.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 330.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 |
1/8 x
6" 1/8 x 6" 1/8 x 6" 1/8 x 6" 1/8 x 6" 1/4 x 6" 1/4 x 6" 1/4 x 6" 1/4 x 6" 1/4 x 6" 1/4 x 6" 1/4 x 6" 3/8 x 6" 3/8 x 6" 3/8 x 6" 3/8 x 6" 3/8 x 6" 3/8 x 6" 3/8 x 6" 3/8 x 6" 1/2 x 6" 1/2 x 6" 1/2 x 6" 1/2 x 6" 1/2 x 6" 1/2 x 6" 1/2 x 6" 3/4 x 6" 3/4 x 6" 1 x 6" 1 x 6" 1 x 6" 1 x 6" 1 x 6" 1 1/4 x 6" 1 1/4 x 6" 1 1/4 x 6" 1 1/4 x 6" |
| FUSED
QUARTZ TUBES (QZ) - Closed end, and Fitting "N" (Space
nipple) Specify tube length " * "  |
| Part number | INCHES | MILLIMETERS | |||||||
| OD | ID | Wall | Lengths to | OD | ID | Wall | Lengths to | Nipple NPT x Length |
|
| QZ030010N-* QZ040020N-* QZ050030N-* QZ060020N-* QZ060040N-* QZ06.35040N-* QZ070050N-* QZ072047N-* QZ080036N-* QZ080020N-* QZ080060N-* QZ080040N-* QZ090070N-* QZ096070N-* QZ09.7507.75N-* QZ099079N-* QZ100060N-* QZ104070N-* QZ110060N-* QZ118090N-* QZ120060N-* QZ012080N-* QZ130040N-* QZ140100N-* QZ150090N-* QZ158130N-* QZ162130N-* QZ180150N-* QZ190135N-* QZ200160N-* QZ205180N-* QZ216180N-* QZ230200N-* QZ250220N-* QZ258220N-* QZ288250N-* QZ300260N-* QZ320280N-* |
.1181 .1575 .1969 .2362 .2362 .2500 .2756 .2835 .3150 .3150 .3150 .3150 .3543 .3780 .3840 .3898 .3937 .4094 .4331 .4650 .4724 .4724 .5118 .5512 .5906 .6220 .6378 .7087 .7480 .7874 .8071 .8504 .9055 .9843 1.0157 1.1339 1.1811 1.2598 |
.0394 .0787 .1181 .0787 .1575 .1575 .1969 .1850 .1417 .0787 .2362 .1575 .2756 .2756 .3050 .3110 .2362 .2756 .2362 .3543 .2362 .3150 .1575 .3937 .3543 .5118 .5118 .5906 .5315 .6299 .7087 .7087 .7874 .8671 .8671 .9843 1.1811 1.2598 |
.0394 .0394 .0394 .0787 .0394 .0463 .0394 .0492 .0866 .1181 .0394 .0787 .0394 .0512 .0394 .0394 .0787 .0669 .0984 .0551 .1181 .0787 .1772 .0787 .0787 .0551 .0630 .0591 .1083 .0787 .0492 .0709 .0591 .0591 .0748 .0748 .0787 .0787 |
48 48 48 48 48 48 48 10 48 48 48 48 48 48 48 18 48 48 48 48 48 48 13 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 |
3.00 4.00 5.00 6.00 6.00 6.35 7.00 7.20 8.00 8.00 8.00 8.00 9.00 9.60 9.75 9.90 10.00 10.40 11.00 11.80 12.00 12.00 13.00 14.00 15.00 15.80 16.20 18.00 19.00 20.00 20.50 21.60 23.00 25.00 25.80 28.80 30.00 32.00 |
1.00 2.00 3.00 2.00 4.00 4.00 5.00 4.70 3.60 2.00 6.00 4.00 7.00 7.00 7.75 7.90 6.00 7.00 6.00 9.00 6.00 8.00 4.00 10.00 9.00 13.00 13.00 15.00 13.50 16.00 18.00 18.00 20.00 22.00 22.00 25.00 26.00 28.00 |
1.000 1.000 1.000 2.000 1.000 1.175 1.000 1.250 2.200 3.000 1.000 2.000 1.000 1.300 1.000 1.000 2.000 1.700 2.500 1.400 3.000 2.000 4.500 2.000 2.000 1.400 1.600 1.500 2.750 2.000 1.250 1.800 1.500 1.500 1.900 1.900 2.000 2.000 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 254.0 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 457.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 330.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 |
1/8 x
7/8" 1/8 x 7/8" 1/8 x 7/8" 1/8 x 7/8" 1/8 x 7/8" 1/4 x 1" 1/4 x 1" 1/4 x 1" 1/4 x 1" 1/4 x 1" 1/4 x 1" 1/4 x 1" 3/8 x 1 1/2" 3/8 x 1 1/2" 3/8 x 1 1/2" 3/8 x 1 1/2" 3/8 x 1 1/2" 3/8 x 1 1/2" 3/8 x 1 1/2" 3/8 x 1 1/2" 1/2 x 1 3/16" 1/2 x 1 3/16" 1/2 x 1 3/16" 1/2 x 1 3/16" 1/2 x 1 3/16" 3/4 x 5/16" 3/4 x 5/16" 3/4 x 5/16" 3/4 x 5/16" 1 x 1 1/2" 1 x 1 1/2" 1 x 1 1/2" 1 x 1 1/2" 1 x 1 1/2" 1 1/4 x 1 5/8" 1 1/4 x 1 5/8" 1 1/4 x 1 5/8" 1 1/4 x 1 5/8" |
Back to top OUTSIDE DIAMETER
| FUSED
QUARTZ TUBES (QZ) - Closed end by Outside Diameter 1 mm to 7
mm Specify tube length " * "  |
| Part number | INCHES | MILLIMETERS | ||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |
| QZ030010-* QZ030020-* QZ040020-* QZ040030-* QZ050030-* QZ060020-* QZ060040-* QZ06.35040-* QZ070050-* QZ072047-* QZ07.25050-* |
.1181 .1181 .1575 .1575 .1969 .2362 .2362 .2500 .2756 .2835 .2854 |
.0394 .0787 .0787 .1181 .1181 .0787 .1575 .1575 .1969 .1850 .1969 |
.0394 .0413 .0394 .0413 .0394 .0787 .0394 .0463 .0394 .0492 .0443 |
48 48 48 48 48 48 48 48 48 10 48 |
3.00 3.00 4.00 4.00 5.00 6.00 6.00 6.35 7.00 7.20 7.25 |
1.00 2.00 2.00 3.00 3.00 2.00 4.00 4.00 5.00 4.70 5.00 |
1.000 .050 1.000 .050 1.000 2.000 1.000 1.175 1.000 1.250 1.125 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 254.0 1219.2 |
| FUSED
QUARTZ TUBES (QZ) - Closed end by Outside Diameter 8 mm to 11
mm Specify tube length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QZ080020-* QZ080036-* QZ080040-* QZ080060-* QZ090070-* QZ096070-* QZ09.7507.75-* QZ099079-* QZ100060-* QZ100080-* QZ104070-* QZ110060-* QZ110090-* QZ118090-* |
.3150 .3150 .3150 .3150 .3543 .3780 .3840 .3898 .3937 .3937 .4094 .4331 .4331 .4650 |
.0787 .1417 .1575 .2362 .2756 .2756 .3050 .3110 .2362 .3150 .2756 .2362 .3543 .3543 |
.1181 .0866 .0787 .0394 .0394 .0512 .0394 .0394 .0787 .0394 .0669 0984 .0394 .0551 |
48 48 48 48 48 48 48 18 48 48 48 48 48 48 |
8.00 8.00 8.00 8.00 9.00 9.60 9.75 9.90 10.00 10.00 10.40 11.00 11.00 11.80 |
2.00 3.60 4.00 6.00 7.00 7.00 7.75 7.90 6.00 8.00 7.00 6.00 9.00 9.00 |
3,000 2.200 2.000 1.000 1.000 1.300 1.000 1.000 2.000 1.000 1.700 2.500 1.000 1.400 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 457.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 |
||
| FUSED
QUARTZ TUBES (QZ) - Closed end by Outside Diameter 12 mm to
18 mm Specify tube length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QZ120060-* QZ012080-* QZ120100-* QZ12.7510.5-* QZ130040-* QZ130105-* QZ130110-* QZ140100-* QZ140120-* QZ150090-* QZ150130-* QZ158130-* QZ160140-* QZ162130-* QZ170150-* QZ180150-* QZ180160-* |
.4724 .4724 .4724 .5020 .5118 .5118 .5118 .5512 .5512 .5906 .5906 .6220 .6299 .6378 .6693 .7087 .7087 |
.2362 .3150 .3937 .4134 .1575 .4134 .4331 .3937 .4724 .3543 .5118 .5118 .5512 .5118 .5906 .5906 .6299 |
.1181 .0787 .0394 .0443 .1772 .0492 .0394 .0787 .0394 .0787 .0394 .0551 .0394 .0630 .0394 .0591 .0394 |
48 48 48 48 13 48 48 48 48 48 48 48 48 48 48 48 48 |
12.00 12.00 12.00 12.75 13.00 13.00 13.00 14.00 14.00 15.00 15.00 15.80 16.00 16.20 17.00 18.00 18.00 |
6.00 8.00 10.00 10.50 4.00 10.50 11.00 10.00 12.00 9.00 13.00 13.00 14.00 13.00 15.00 15.00 16.00 |
3.000 2.000 1.000 1.125 4.500 1.250 1.000 2.000 1.000 2.000 1.000 1.400 1.000 1.500 1.000 1.500 1.000 |
1219.2 1219.2 1219.2 1219.2 330.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 |
||
| FUSED
QUARTZ TUBES (QZ) - Closed end by Outside Diameter 19 mm to
28 mm Specify tube length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QZ190135-* QZ190170-* QZ200160-* QZ205180-* QZ216180-* QZ220200-* QZ225200-* QZ230200-* QZ245220-* QZ250220-* QZ258220-* QZ270250-* QZ275250-* QZ280250-* QZ288250-* |
.7480 .7480 .7874 .8071 .8504 .8661 .8858 .9055 .9646 .9843 1.0157 1.0630 1.0827 1.1024 1.1339 |
.5315 .6693 .6299 .7087 .7087 .7874 .7874 .7874 .8661 .8671 .8671 .9843 .9843 .9843 .9843 |
.1083 .0394 .0787 .0492 .0709 .0394 .0492 .0591 .0492 .0591 .0748 .0394 .0492 .0591 .0748 |
48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 |
19.00 19.00 20.00 20.50 21.60 22.00 22.50 23.00 24.50 25.00 25.80 27.00 27.50 28.00 28.80 |
13.50 17.00 16.00 18.00 18.00 20.00 20.00 20.00 22.00 22.00 22.00 25.00 25.00 25.00 25.00 |
2.750 1.000 2.000 1.250 1.800 1.000 1.250 1.500 1.250 1.500 1.900 1.000 1.250 1.500 1.900 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 |
||
| FUSED
QUARTZ TUBES (QZ) - Closed end by Outside Diameter 29 mm to
56 mm Specify tube length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QZ300260-* QZ300270-* QZ320280-* QZ330300-* QZ340300-* QZ350320-* QZ360300-* QZ380350-* QZ400360-* QZ400370-* QZ421381-* QZ430400-* QZ440400-* QZ450420-* QZ480450-* QZ480440-* QZ500460-* QZ500470-* QZ520480-* QZ540500-* QT550500-* |
1.1811 1.1811 1.2598 1.2992 1.3386 1.3780 1.4173 1.4961 1.5748 1.5748 1.6575 1.6929 1.7323 1.7717 1.8898 1.8898 1.9685 1.9685 2.0472 2.1260 2.1654 |
1.0236 1.0630 1.1024 1.1811 1.1811 1.2598 1.1811 1.3780 1.4173 1.4567 1.5000 1.5748 1.5748 1.6535 1.7717 1.7323 1.8110 1.8504 1.8898 1.9685 1.9685 |
.0787 .0591 .0787 .0591 .0787 .0591 .1181 .0591 .0787 .0591 .0787 .0591 .0787 .0591 .0591 .0787 .0787 .0591 .0787 .0787 .0984 |
48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 |
30.00 30.00 32.00 33.00 34.00 35.00 36.00 38.00 40.00 40.00 42.10 43.00 44.00 45.00 48.00 48.00 50.00 50.00 52.00 54.00 55.00 |
26.00 27.00 28.00 30.00 30.00 32.00 30.00 35.00 36.00 37.00 38.10 40.00 40.00 42.00 44.00 45.00 46.00 47.00 48.00 50.00 50.00 |
2.000 1.500 2.000 1.500 2.000 1.500 3.000 1.500 2.000 1.500 2.000 1.500 2.000 1.500 2.000 1.500 2.000 1.500 2.000 2.000 2.500 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 |
||
| FUSED
QUARTZ TUBES (QZ) - Closed end by Outside Diameter 57 mm to
100 mm Specify tube length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QZ570530-* QZ580520-* QZ590550-* QZ610570-* QZ640600-* QZ650600-* QZ670630-* QZ680640-* QZ690650-* QZ700660-* QZ740700-* QZ750700-* QZ770730-* QZ800750-* QZ850800-* QZ900850-* QZ950900-* QZ1000950-* |
2.2441 2.2835 2.3228 2.4016 2.5197 2.5591 2.6378 2.6772 2.7165 2.7559 2.9134 2.9528 3.0315 3.1496 3.3465 3.5433 3.7402 3.9370 |
2.0866 2.0472 2.1654 2.2441 2.3622 2.3622 2.4803 2.5197 2.5591 2.5984 2.7559 2.7559 2.8740 2.9528 3.1496 3.3465 3.5433 3.7402 |
.0787 .1181 .0787 .0787 .0787 .0984 .0787 .0787 .0787 .0787 .0787 .0984 .0787 .0984 .0984 .0984 .0984 .0984 |
48 48 48 48 48 48 48 48 48 48 48 72 72 72 72 72 72 72 |
57.00 58.00 59.00 61.00 64.00 65.00 67.00 68.00 69.00 70.00 74.00 75.00 77.00 80.00 85.00 90.00 95.00 100.00 |
53.00 52.00 55.00 57.00 60.00 60.00 63.00 64.00 65.00 66.00 70.00 70.00 73.00 75.00 80.00 85.00 90.00 95.00 |
2.000 3.000 2.000 2.000 2.000 2.500 2.000 2.000 2.000 2.000 2.000 2.500 2.000 2.500 2.500 2.500 2.500 2.500 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 |
||
| FUSED
QUARTZ TUBES (QZ)-Closed end by Outside Diameter 101 mm to 179 mm Specify tube length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QZ10661016-* QZ11001050-* QZ11501100-* QZ12001150-* QZ12501200-* QZ13001250-* QZ13501300-* QZ13601300-* QZ14101350-* QZ14601400-* QZ15101450-* QZ15601500-* QZ16101550-* QZ16601600-* QZ17101650-* QZ17601700-* |
4.1969 4.3307 4.5276 4.7244 4.9213 5.1181 5.3150 5.3543 5.5512 5.7480 5.9449 6.1417 6.3386 6.5354 6.7323 6.9291 |
4.0000 4.1339 4.3307 4.5276 4.7244 4.9213 5.1181 5.1181 5.3150 5.5118 5.7087 5.9055 6.1024 6.2992 6.4961 6.6929 |
.0984 .0984 .0984 .0984 .0984 .0984 .0984 .0984 .1181 .1181 .1181 .1181 .1181 .1181 .1181 .1181 |
72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 |
106.60 110.00 115.00 120.00 125.00 130.00 135.00 136.00 141.00 146.00 151.00 156.00 161.00 166.00 171.00 176.00 |
101.60 105.00 110.00 115.00 120.00 125.00 130.00 130.00 135.00 140.00 145.00 150.00 155.00 160.00 165.00 170.00 |
2.500 2.500 2.500 2.500 2.500 2.500 2.500 2.500 3.000 3.000 3.000 3.000 3.000 3.000 3.000 3.000 |
1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 |
||
| FUSED
QUARTZ TUBES (QZ)-Closed end by Outside Diameter 180 mm to 239 mm Specify tube length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QZ18401760-* QZ18501780-* QZ19001840-* QZ19601900-* QZ20101950-* QZ20602000-* QZ21102030-* QZ21602080-* QZ22102150-* QZ22102110-* QZ22102150-* QZ22502150-* QZ22602200-* QZ23002200-* QZ22802200-* QZ22902210-* QZ23502250-* QZ23502270-* |
7.2441 7.2835 7.4803 7.7165 7.9134 8.1102 8.3071 8.5039 8.7008 8.7008 8.8583 8.8976 8.9764 9.0157 9.0551 9.2520 9.2520 9.2913 |
4.0000 7.0079 7.5120 7.4803 7.6772 7.8740 7.9921 8.1890 8.3071 8.4646 8.4646 8.6614 8.6614 8.7008 8.6614 8.8583 8.9370 9.0551 |
.1575 .1378 .1181 .1181 .1181 .1181 .1575 .1575 .1969 .1181 .1969 .1181 .1575 .1575 .1969 .1969 .1575 .1181 |
72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 |
184.00 185.00 190.00 196.00 201.00 206.00 211.00 216.00 221.00 221.00 225.00 226.00 228.00 229.00 230.00 235.00 235.00 236.00 |
176.00 178.00 184.00 190.00 195.00 200.00 203.00 208.00 211.00 215.00 215.00 220.00 220.00 221.00 220.00 225.00 227.00 230.00 |
4.000 3.500 3.000 3.000 3.000 3.000 4.000 4.000 5.000 3.000 5.000 3.000 4.000 4.000 5.000 5.000 4.000 3.000 |
1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 |
||
| FUSED
QUARTZ TUBES (QZ) - Closed end by Outside Diameter 240 mm to 320 mm Specify tube length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QZ23602300-* QZ24502350-* QZ24602400-* QZ24902410-* QZ25102410-* QZ25302450-* QZ26002500-* QZ26502570-* QZ26702590-* QZ26802600-* QZ27502650-* QZ28002700-* QZ30002900-* QZ30903000-* QZ31503060-* QZ33003200-* |
9.4488 9.6457 9.6850 9.8031 9.8819 9.9606 10.2362 10.4331 10.5118 10.5512 10.8268 11.0236 11.8110 12.1654 12.4016 12.9921 |
9.0551 9.2520 9.4488 9.4882 9.4882 9.6457 9.8435 10.1181 10.1969 10.2362 10.4331 10.6299 11.4173 11.7924 12.0472 12.5984 |
.1969 .1969 .1181 .1575 .1969 .1575 .1969 .1575 .1575 .1575 .1969 .1969 .1969 .1777 .1777 .1969 |
72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 |
240.00 245.00 246.00 249.00 251.00 253.00 260.00 265.00 267.00 268.00 275.00 280.00 300.00 309.00 315.00 330.00 |
230.00 235.00 240.00 241.00 241.00 245.00 250.00 257.00 259.00 260.00 265.00 270.00 290.00 300.00 306.00 320.00 |
5.000 5.000 3.000 4.000 5.000 4.000 5.000 4.000 4.000 4.000 5.000 5.000 5.000 4.500 4.500 5.000 |
1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 |
||
Back to top INSIDE DIAMETER
| FUSED
QUARTZ TUBES (QZ) - Closed end by Inside Diameter 1 mm to 5
mm Specify tube length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QZ030010-* QZ030020-* QZ040020-* QZ060020-* QZ080020-* QZ040030-* QZ050030-* QZ080036-* QZ060040-* QZ06.35040-* QZ080040-* QZ130040-* QZ072047-* QZ070050-* QZ07.25050-* |
.1181 .1181 .1575 .2362 .3150 .1575 .1969 .3150 .2362 .2500 .3150 .5118 .2835 .2756 .2854 |
.0394 .0787 .0787 .0787 .0787 .1181 .1181 .1417 .1575 .1575 .1575 .1575 .1850 .1969 .1969 |
.0394 .0413 .0394 .0787 .1181 .0413 .0394 .0866 .0394 .0463 .0787 .1772 .0492 .0394 .0443 |
48 48 48 48 48 48 48 48 48 48 48 13 9.75 48 48 |
3.00 3.00 4.00 6.00 8.00 4.00 5.00 8.00 6.00 6.35 8.00 13.00 7.20 7.00 7.25 |
1.00 2.00 2.00 2.00 2.00 3.00 3.00 3.60 4.00 4.00 4.00 4.00 4.70 5.00 5.00 |
1.000 .050 1.000 2.000 3.000 .050 1.000 2.200 1.000 1.175 2.000 4.500 1.250 1.000 1.125 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 330.2 247.7 1219.2 1219.2 |
||
| FUSED
QUARTZ TUBES (QZ) - Closed end by Inside Diameter 6 mm to 9
mm Specify tube length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QZ080060-* QZ100060-* QZ110060-* QZ120060-* QZ090070-* QZ096070-* QZ104070-* QZ09.7507.75-* QZ099079-* QZ100080-* QZ012080-* QZ110090-* QZ118090-* QZ150090-* |
.3150 .3937 .4331 .4724 .3543 .3685 .4094 .3840 .3898 .3937 .4724 .4331 .4650 .5906 |
.2362 .2362 .2362 .2362 .2756 .2756 .2756 .3050 .3110 .3150 .3150 .3543 .3543 .3543 |
.0394 .0787 .0984 .1181 .0394 .0512 .0669 .0394 .0394 .0394 .0787 .0394 .0551 .0787 |
48 48 48 48 48 48 48 48 18 48 48 48 48 48 |
8.00 10.00 11.00 12.00 9.00 9.60 10.40 9.75 9.90 10.00 12.00 11.00 11.80 15.00 |
6.00 6.00 6.00 6.00 7.00 7.00 7.00 7.75 7.90 8.00 8.00 9.00 9.00 9.00 |
1.000 2.000 2.500 3.000 1.000 1.300 1.700 1.000 1.000 1.000 2.000 1.000 1.400 2.000 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 457.2 1219.2 1219.2 1219.2 1219.2 1219.2 |
||
| FUSED
QUARTZ TUBES (QZ) - Closed end by Inside Diameter 10 mm to 15
mm Specify tube length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QZ120100-* QZ140100-* QZ12.7510.5-* QZ130105-* QZ130110-* QZ140120-* QZ150130-* QZ158130-* QZ162130-* QZ190135-* QZ160140-* QZ170150-* QZ180150-* |
.4724 .5512 .5020 .5118 .5118 .5512 .5906 .6220 .6378 .7480 .6299 .6693 .7087 |
.3937 .3937 .4134 .4134 .4331 .4724 .5118 .5118 .5118 .5315 .5512 .5906 .5906 |
.0394 .0787 .0443 .0492 .0394 .0394 .0394 .0551 .0630 .1083 .0394 .0394 .0591 |
48 48 48 48 48 48 48 48 48 48 48 48 48 |
12.00 14.00 12.75 13.00 13.00 14.00 15.00 15.80 16.20 19.00 16.00 17.00 18.00 |
10.00 10.00 10.50 10.50 11.00 12.00 13.00 13.00 13.00 13.50 14.00 15.00 15.00 |
1.000 2.000 1.125 1.250 1.000 1.000 1.000 1.400 1.600 2.750 1.000 1.000 1.500 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 |
||
| FUSED
QUARTZ TUBES (QZ) - Closed end by Inside Diameter 16 mm to 25
mm Specify tube length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QZ180160-* QZ200160-* QZ190170-* QZ205180-* QZ216180-* QZ220200-* QZ225200-* QZ230200-* QZ245220-* QZ250220-* QZ258220-* QZ270250-* QZ275250-* QZ280250-* QZ288250-* |
.7087 .7874 .7480 .8071 .8504 .8661 .8858 .9055 .9646 .9843 1.0157 1.0630 1.0827 1.1024 1.1339 |
.6299 .6299 .6693 .7087 .7087 .7874 .7874 .7874 .8661 .8671 .8671 .9843 .9843 .9843 .9843 |
.0394 .0787 .0394 .0492 .0709 .0394 .0492 .0591 .0492 .0591 .0748 .0394 .0492 .0591 .0748 |
48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 |
18.00 20.00 19.00 20.50 21.60 22.00 22.50 23.00 24.50 25.00 25.80 27.00 27.50 28.00 28.80 |
16.00 16.00 17.00 18.00 18.00 20.00 20.00 20.00 22.00 22.00 22.00 25.00 25.00 25.00 25.00 |
1.000 2.000 1.000 1.250 1.800 1.000 1.250 1.500 1.250 1.500 1.900 1.000 1.250 1.500 1.900 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 |
||
| FUSED
QUARTZ TUBES (QZ) - Closed end by Inside Diameter 26
mm to 50 mm Specify tube length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QZ300260-* QZ300270-* QZ320280-* QZ330300-* QZ340300-* QZ360300-* QZ350320-* QZ380350-* QZ400360-* QZ400370-* QZ421381-* QZ430400-* QZ440400-* QZ450420-* QZ480440-* QZ480450-* QZ500460-* QZ500470-* QZ520480-* QZ540500-* QZ550500-* |
1.1811 1.1811 1.2598 1.2992 1.3386 1.4173 1.3780 1.4961 1.5748 1.5748 1.6575 1.6929 1.7323 1.7717 1.8898 1.8898 1.9685 1.9685 2.0472 2.1260 2.1654 |
1.0236 1.0630 1.1024 1.1811 1.1811 1.1811 1.2598 1.3780 1.4173 1.4567 1.5000 1.5748 1.5748 1.6535 1.7323 1.7717 1.8110 1.8504 1.8898 1.9685 1.9685 |
.0787 .0591 .0787 .0591 .0787 .1181 .0591 .0591 .0787 .0591 .0787 .0591 .0787 .0591 .0787 .0591 .0787 .0591 .0787 .0787 .0984 |
48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 |
30.00 30.00 32.00 33.00 34.00 36.00 35.00 38.00 40.00 40.00 42.10 43.00 44.00 45.00 48.00 48.00 50.00 50.00 52.00 54.00 55.00 |
26.00 27.00 28.00 30.00 30.00 30.00 32.00 35.00 36.00 37.00 38.10 40.00 40.00 42.00 44.00 45.00 46.00 47.00 48.00 50.00 50.00 |
2.000 1.500 2.000 1.500 2.000 3.000 1.500 1.500 2.000 1.500 2.000 1.500 2.000 1.500 2.000 1.500 2.000 1.500 2.000 2.000 2.500 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 |
||
| FUSED
QUARTZ TUBES (QZ) - Closed end by Inside Diameter 51 mm to100
mm Specify tube length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QZ580520-* QZ570530-* QZ590550-* QZ610570-* QZ640600-* QZ650600-* QZ670630-* QZ680640-* QZ690650-* QZ700660-* QZ740700-* QZ750700-* QZ770730-* QZ800750-* QZ850800-* QZ900850-* QZ950900-* QZ1000950-* |
2.2835 2.2441 2.3228 2.4016 2.5197 2.5591 2.6378 2.6772 2.7165 2.7559 2.9134 2.9528 3.0315 3.1496 3.3465 3.5433 3.7402 3.9370 |
2.0472 2.0866 2.1654 2.2441 2.3622 2.3622 2.4803 2.5197 2.5591 2.5984 2.7559 2.7559 2.8740 2.9528 3.1496 3.3465 3.5433 3.7402 |
.1181 .0787 .0787 .0787 .0787 .0984 .0787 .0787 .0787 .0787 .0787 .0984 .0787 .0984 .0984 .0984 .0984 .0984 |
48 48 48 48 48 48 48 48 48 48 48 72 72 72 72 72 72 72 |
58.00 57.00 59.00 61.00 64.00 65.00 67.00 68.00 69.00 70.00 74.00 75.00 77.00 80.00 85.00 90.00 95.00 100.00 |
52.00 53.00 55.00 57.00 60.00 60.00 63.00 64.00 65.00 66.00 70.00 70.00 73.00 75.00 80.00 85.00 90.00 95.00 |
3.000 2.000 2.000 2.000 2.000 2.500 2.000 2.000 2.000 2.000 2.000 2.500 2.000 2.500 2.500 2.500 2.500 2.500 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 |
||
| FUSED
QUARTZ TUBES (QZ) - Closed end by Inside Diameter 101 mm to
170 mm Specify tube length " * ". |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QZ10661016-* QZ11001050-* QZ11501100-* QZ12001150-* QZ12501200-* QZ13001250-* QZ13501300-* QZ13601300-* QZ14101350-* QZ14601400-* QZ15101450-* QZ15601500-* QZ16101550-* QZ16601600-* QZ17101650-* QZ17601700-* |
4.1969 4.3307 4.5276 4.7244 4.9213 5.1181 5.3150 5.3543 5.5512 5.7480 5.9449 6.1417 6.3386 6.5354 6.7323 6.9291 |
4.0000 4.1339 4.3307 4.5276 4.7244 4.9213 5.1181 5.1181 5.3150 5.5118 5.7087 5.9055 6.1024 6.2992 6.4961 6.6929 |
.0984 .0984 .0984 .0984 .0984 .0984 .0984 .0984 .1181 .1181 .1181 .1181 .1181 .1181 .1181 .1181 |
72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 |
106.60 110.00 115.00 120.00 125.00 130.00 135.00 136.00 141.00 146.00 151.00 156.00 161.00 166.00 171.00 176.00 |
101.60 105.00 110.00 115.00 120.00 125.00 130.00 130.00 135.00 140.00 145.00 150.00 155.00 160.00 165.00 170.00 |
2.500 2.500 2.500 2.500 2.500 2.500 2.500 2.500 3.000 3.000 3.000 3.000 3.000 3.000 3.000 3.000 |
1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 |
||
| FUSED
QUARTZ TUBES (QZ) - Closed end by Inside Diameter 171 mm to
230 mm Specify tube length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QZ18401760-* QZ18501780-* QZ19001840-* QZ19601900-* QZ20101950-* QZ20602000-* QZ21102030-* QZ21602080-* QZ22102150-* QZ22102110-* QZ22102150-* QZ22502150-* QZ22602200-* QZ22802200-* QZ23002200-* QZ22902210-* QZ23502250-* QZ23502270-* QZ23602300-* |
7.2441 7.2835 7.4803 7.7165 7.9134 8.1102 8.3071 8.5039 8.7008 8.7008 8.8583 8.8976 8.9764 9.0551 9.0157 9.2520 9.2520 9.2913 9.4488 |
4.0000 7.0079 7.5120 7.4803 7.6772 7.8740 7.9921 8.1890 8.3071 8.4646 8.4646 8.6614 8.6614 8.6614 8.7008 8.8583 8.9370 9.0551 9.0551 |
.1575 .1378 .1181 .1181 .1181 .1181 .1575 .1575 .1969 .1181 .1969 .1181 .1575 .1969 .1575 .1969 .1575 .1181 .1969 |
72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 |
184.00 185.00 190.00 196.00 201.00 206.00 211.00 216.00 221.00 221.00 225.00 226.00 228.00 230.00 229.00 235.00 235.00 236.00 240.00 |
176.00 178.00 184.00 190.00 195.00 200.00 203.00 208.00 211.00 215.00 215.00 220.00 220.00 220.00 221.00 225.00 227.00 230.00 230.00 |
4.000 3.500 3.000 3.000 3.000 3.000 4.000 4.000 5.000 3.000 5.000 3.000 4.000 5.000 4.000 5.000 4.000 3.000 5.000 |
1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 |
||
| FUSED
QUARTZ TUBES (QZ) - Closed end by Inside Diameter 231 mm to
320 mm Specify tube length " * ". |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QZ24502350-* QZ24602400-* QZ24902410-* QZ25102410-* QZ25302450-* QZ26002500-* QZ26502570-* QZ26702590-* QZ26802600-* QZ27502650-* QZ28002700-* QZ30002900-* QZ30903000-* QZ31503060-* QZ33003200-* |
9.6457 9.6850 9.8031 9.8819 9.9606 10.2362 10.4331 10.5118 10.5512 10.8268 11.0236 11.8110 12.1654 12.4016 12.9921 |
9.2520 9.4488 9.4882 9.4882 9.6457 9.8435 10.1181 10.1969 10.2362 10.4331 10.6299 11.4173 11.7924 12.0472 12.5984 |
.1969 .1181 .1575 .1969 .1575 .1969 .1575 .1575 .1575 .1969 .1969 .1969 .1777 .1777 .1969 |
72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 |
245.00 246.00 249.00 251.00 253.00 260.00 265.00 267.00 268.00 275.00 280.00 300.00 309.00 315.00 330.00 |
235.00 240.00 241.00 241.00 245.00 250.00 257.00 259.00 260.00 265.00 270.00 290.00 300.00 306.00 320.00 |
5.000 3.000 4.000 5.000 4.000 5.000 4.000 4.000 4.000 5.000 5.000 5.000 4.500 4.500 5.000 |
1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 |
||
Back to top OUTSIDE DIAMETER
FUSED
QUARTZ TUBING (QT) - Open both ends (OBE) by Outside Diameter 1 mm
to 7 mm Specify tubing length " * ". |
| Part number | INCHES | MILLIMETERS | ||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |
| QT030010-* QT030020-* QT040020-* QT040030-* QT050030-* QT060020-* QT060040-* QT06.35040-* QT070050-* QT072047-* QT07.25050-* |
.1181 .1181 .1575 .1575 .1969 .2362 .2362 .2500 .2756 .2835 .2854 |
.0394 .0787 .0787 .1181 .1181 .0787 .1575 .1575 .1969 .1850 .1969 |
.0394 .0413 .0394 .0413 .0394 .0787 .0394 .0463 .0394 .0492 .0443 |
48 48 48 48 48 48 48 48 48 10 48 |
3.00 3.00 4.00 4.00 5.00 6.00 6.00 6.35 7.00 7.20 7.25 |
1.00 2.00 2.00 3.00 3.00 2.00 4.00 4.00 5.00 4.70 5.00 |
1.000 .050 1.000 .050 1.000 2.000 1.000 1.175 1.000 1.250 1.125 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 254.0 1219.2 |
| FUSED
QUARTZ TUBING (QT) - Open both ends (OBE) by Outside Diameter
8 mm to 11 mm Specify tubing length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QT080020-* QT080036-* QT080040-* QT080060-* QT090070-* QT096070-* QT09.7507.75-* QT099079-* QT100060-* QT100080-* QT104070-* QT110060-* QT110090-* QT118090-* |
.3150 .3150 .3150 .3150 .3543 .3780 .3840 .3898 .3937 .3937 .4094 .4331 .4331 .4650 |
.0787 .1417 .1575 .2362 .2756 .2756 .3050 .3110 .2362 .3150 .2756 .2362 .3543 .3543 |
.1181 .0866 0787 .0394 .0394 .0394 .0394 .0394 .0787 .0394 .0669 .0984 .0394 .0551 |
48 48 48 48 48 48 48 18 48 48 48 48 48 48 |
8.00 8.00 8.00 8.00 9.00 9.60 9.75 9.90 10.00 10.00 10.40 11.00 11.00 11.80 |
2.00 3.60 4.00 6.00 7.00 7.00 7.75 7.90 6.00 8.00 7.00 6.00 9.00 9.00 |
3.000 2.200 2.000 1.000 1.000 1.300 1.000 1.000 2.000 1.000 1.700 2.500 1.000 1.400 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 457.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 |
||
| FUSED
QUARTZ TUBING (QT) -Open both ends (OBE) by Outside Diameter 12 mm
to 18 mm Specify tubing length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QT120060-* QT120080-* QT120100-* QT12.7510.5-* QT130040-* QT130105-* QT130110-* QT140100-* QT140120-* QT150090-* QT150130-* QT158130-* QT160140-* QT162130-* QT170150-* QT180150-* QT180160-* |
.4724 .4724 .4724 .5020 .5118 .5118 .5118 .5512 .5512 .5906 .5906 .6220 .6299 .6378 .6693 .7087 .7087 |
.2362 .3150 .3937 .4134 .1575 .4134 .4331 .3937 .4724 .3543 .5118 .5118 .5512 .5118 .5906 .5906 .6299 |
.1181 .0787 .0394 .0443 .1772 .0492 .0394 .0787 .0394 .0787 .0394 .0551 .0394 .0630 .0394 .0591 .0394 |
48 48 48 48 13 48 48 48 48 48 48 48 48 48 48 48 48 |
12.00 12.00 12.00 12.75 13.00 13.00 13.00 14.00 14.00 15.00 15.00 15.80 16.00 16.30 17.00 18.00 18.00 |
6.00 8.00 10.00 10.50 4.00 10.50 11.00 10.00 12.00 9.00 13.00 13.00 14.00 13.00 15.00 15.00 16.00 |
3.000 2.000 1.000 1.125 4.500 1.250 1.000 2.000 1.000 2.000 1.000 1.400 1.000 1.600 1.000 1.500 1.000 |
1219.2 1219.2 1219.2 1219.2 330.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 |
||
| FUSED
QUARTZ TUBING (QT) - Open both ends (OBE) by Outside Diameter 19mm
to 29mm Specify tubing length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QT190135-* QT190170-* QT200160-* QT205180-* QT216180-* QT220200-* QT225200-* QT230200-* QT245220-* QT250220-* QT258220-* QT270250-* QT275250-* QT280250-* QT288250-* |
.7480 .7480 .7874 .8071 .8504 .8661 .8858 .9055 .9646 .9843 1.0157 1.0630 1.0827 1.1024 1.1339 |
.5315 .6693 .6299 .7087 .7087 .7874 .7874 .7874 .8661 .8671 .8671 .9843 .9843 .9843 .9843 |
.1083 .0394 .0787 .0492 .0709 .0394 .0492 .0591 .0492 .0591 .0748 .0394 .0492 .0591 .0748 |
48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 |
19.00 19.00 20.00 20.50 21.60 22.00 22.50 23.00 24.50 25.00 25.80 27.00 27.50 28.00 28.80 |
13.50 17.00 16.00 18.00 18.00 20.00 20.00 20.00 22.00 22.00 22.00 25.00 25.00 25.00 25.00 |
2.750 1.000 2.000 1.250 1.800 1.000 1.250 1.500 1.250 1.500 1.900 1.000 1.250 1.500 1.900 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 |
||
| FUSED
QUARTZ TUBING (QT)- Open both ends (OBE) by Outside Diameter 30 mm
to 56 mm Specify tubing length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QT300260-* QT300270-* QT320280-* QT330300-* QT340300-* QT350320-* QT360300-* QT380350-* QT400360-* QT400370-* QT421381-* QT430400-* QT440400-* QT450420-* QT480440-* QT480450-* QT500460-* QT500470-* QT520480-* QT540500-* QT550500-* |
1.1811 1.1811 1.2598 1.2992 1.3386 1.3780 1.4173 1.4961 1.5748 1.5748 1.6575 1.6929 1.7323 1.7717 1.8898 1.8898 1.9685 1.9685 2.0472 2.1260 2.1654 |
1.0236 1.0630 1.1024 1.1811 1.1811 1.2598 1.1811 1.3780 1.4173 1.4567 1.5000 1.5748 1.5748 1.6535 1.7323 1.7717 1.8110 1.8504 1.8898 1.9685 1.9685 |
.0787 .0591 .0787 .0591 .0787 .0591 .1181 .0591 .0787 .0591 .0787 .0591 .0787 .0591 .0787 .0591 .0787 .0591 .0787 .0787 .0984 |
48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 |
30.00 30.00 32.00 33.00 34.00 35.00 36.00 38.00 40.00 40.00 42.10 43.00 44,00 45.00 48.00 48.00 50.00 50.00 52.00 54.00 55.00 |
26.00 27.00 28.00 30.00 30.00 32.00 30.00 35.00 36.00 37.00 38.10 40.00 40.00 42.00 44.00 45.00 46.00 47.00 48.00 50.00 50.00 |
2.000 1.500 2.000 1.500 2.000 1.500 3.000 1.500 2.000 1.500 2.000 1.500 2.000 1.500 2.000 1.500 2.000 1.500 2.000 2.000 2.500 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 |
||
| FUSED
QUARTZ TUBING (QT)-Open both ends (OBE) by Outside Diameter
57 mm to 100mm Specify tubing length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QT570530-* QT580520-* QT590550-* QT610570-* QT640600-* QT650600-* QT670630-* QT680640-* QT690650-* QT700660-* QT740700-* QT750700-* QT770730-* QT800750-* QT850800-* QT900850-* QT950900-* QT1000950-* |
2.2441 2.2835 2.3228 2.4016 2.5197 2.5591 2.6378 2.6772 2.7165 2.7559 2.9134 2.9528 3.0315 3.1496 3.3465 3.5433 3.7402 3.9370 |
2.0866 2.0472 2.1654 2.2441 2.3622 2.3622 2.4803 2.5197 2.5591 2.5984 2.7559 2.7559 2.8740 2.9528 3.1496 3.3465 3.5433 3.7402 |
.0787 .1181 .0787 .0787 .0787 .0984 .0787 .0787 .0787 .0787 .0787 .0984 .0787 .0984 .0984 .0984 .0984 .0984 |
48 48 48 48 48 48 48 48 48 48 48 72 72 72 72 72 72 72 |
57.00 58.00 59.00 61.00 64.00 65.00 67.00 68.00 69.00 70.00 74.00 75.00 77.00 80.00 85.00 90.00 95.00 100.00 |
53.00 52.00 55.00 57.00 60.00 60.00 63.00 64.00 65.00 66.00 70.00 70.00 73.00 75.00 80.00 85.00 90.00 95.00 |
2.000 3.000 2.000 2.000 2.000 2.500 2.000 2.000 2.000 2.000 2.000 2.500 2.000 2.500 2.500 2.500 2.500 2.500 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 |
||
| FUSED
QUARTZ TUBING (QT)-Open both ends (OBE) by Outside Diameter 101mm
to 179mm Specify tubing length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QT10661016-* QT11001050-* QT11501100-* QT12001150-* QT12501200-* QT13001250-* QT13501300-* QT13601300-* QT14101350-* QT14601400-* QT15101450-* QT15601500-* QT16101550-* QT16601600-* QT17101650-* QT17601700-* |
4.1969 4.3307 4.5276 4.7244 4.9213 5.1181 5.3150 5.3543 5.5512 5.7480 5.9449 6.1417 6.3386 6.5354 6.7323 6.9291 |
4.0000 4.1339 4.3307 4.5276 4.7244 4.9213 5.1181 5.1181 5.3150 5.5118 5.7087 5.9055 6.1024 6.2992 6.4961 6.6929 |
.0984 .0984 .0984 .0984 .0984 .0984 .0984 .0984 .1181 .1181 .1181 .1181 .1181 .1181 .1181 .1181 |
72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 |
106.60 110.00 115.00 120.00 125.00 130.00 135.00 136.00 141.00 146.00 151.00 156.00 161.00 166.00 171.00 176.00 |
101.60 105.00 110.00 115.00 120.00 125.00 130.00 130.00 135.00 140.00 145.00 150.00 155.00 160.00 165.00 170.00 |
2.500 2.500 2.500 2.500 2.500 2.500 2.500 2.500 3.000 3.000 3.000 3.000 3.000 3.000 3.000 3.000 |
1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 |
||
| FUSED
QUARTZ TUBING (QT)-Open both ends (OBE) by Outside Diameter 180mm
to 239mm Specify tubing length " * ". |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QT18401760-* QT18501780-* QT19001840-* QT19601900-* QT20101950-* QT20602000-* QT21102030-* QT21602080-* QT22102150-* QT22102110-* QT22102150-* QT22502150-* QT22602200-* QT23002200-* QT22802200-* QT22902210-* QT23502250-* QT23502270-* |
7.2441 7.2835 7.4803 7.7165 7.9134 8.1102 8.3071 8.5039 8.7008 8.7008 8.8583 8.8976 8.9764 9.0157 9.0551 9.2520 9.2520 9.2913 |
4.0000 7.0079 7.5120 7.4803 7.6772 7.8740 7.9921 8.1890 8.3071 8.4646 8.4646 8.6614 8.6614 8.7008 8.6614 8.8583 8.9370 9.0551 |
.1575 .1378 .1181 .1181 .1181 .1181 .1575 .1575 .1969 .1181 .1969 .1181 .1575 .1575 .1969 .1969 .1575 .1181 |
72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 |
184.00 185.00 190.00 196.00 201.00 206.00 211.00 216.00 221.00 221.00 225.00 226.00 228.00 229.00 230.00 235.00 235.00 236.00 |
176.00 178.00 184.00 190.00 195.00 200.00 203.00 208.00 211.00 215.00 215.00 220.00 220.00 221.00 220.00 225.00 227.00 230.00 |
4.000 3.500 3.000 3.000 3.000 3.000 4.000 4.000 5.000 3.000 5.000 3.000 4.000 4.000 5.000 5.000 4.000 3.000 |
1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 |
||
| FUSED
QUARTZ TUBING (QT)-Open both ends (OBE) by Outside Diameter 240mm
to 320mm Specify tubing length " * ". |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QT23602300-* QT24502350-* QT24602400-* QT24902410-* QT25102410-* QT25302450-* QT26002500-* QT26502570-* QT26702590-* QT26802600-* QT27502650-* QT28002700-* QT30002900-* QT30903000-* QT31503060-* QT33003200-* |
9.4488 9.6457 9.6850 9.8031 9.8819 9.9606 10.2362 10.4331 10.5118 10.5512 10.8268 11.0236 11.8110 12.1654 12.4016 12.9921 |
9.0551 9.2520 9.4488 9.4882 9.4882 9.6457 9.8435 10.1181 10.1969 10.2362 10.4331 10.6299 11.4173 11.7924 12.0472 12.5984 |
.1969 .1969 .1181 .1575 .1969 .1575 .1969 .1575 .1575 .1575 .1969 .1969 .1969 .1777 .1777 .1969 |
72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 |
240.00 245.00 246.00 249.00 251.00 253.00 260.00 265.00 267.00 268.00 275.00 280.00 300.00 309.00 315.00 330.00 |
230.00 235.00 240.00 241.00 241.00 245.00 250.00 257.00 259.00 260.00 265.00 270.00 290.00 300.00 306.00 320.00 |
5.000 5.000 3.000 4.000 5.000 4.000 5.000 4.000 4.000 4.000 5.000 5.000 5.000 4.500 4.500 5.000 |
1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 |
||
Back to top INSIDE DIAMETER
| FUSED
QUARTZ TUBING (QT) - Open both ends (OBE) by Inside Diameter
1 mm to 5 mm. Specify tubing length " * ". |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QT030010-* QT030020-* QT040020-* QT060020-* QT080020-* QT040030-* QT050030-* QT080036-* QT060040-* QT06.35040-* QT080040-* QT130040-* QT072047-* QT070050-* QT07.25050-* |
.1181 .1181 .1575 .2362 .3150 .1575 .1969 .3150 .2362 .2500 .3150 .5118 .2835 .2756 .2854 |
.0394 .0787 .0787 .0787 .0787 .1181 .1181 .1417 .1575 .1575 .1575 .1575 .1850 .1969 .1969 |
.0394 .0413 .0394 .0787 .1181 .0413 .0394 .0866 .0394 .0463 .0787 .1772 .0492 .0394 .0443 |
48 48 48 48 48 48 48 48 48 48 48 13 9.75 48 48 |
3.00 3.00 4.00 6.00 8.00 4.00 5.00 8.00 6.00 6.35 8.00 13.00 7.20 7.00 7.25 |
1.00 2.00 2.00 2.00 2.00 3.00 3.00 3.60 4.00 4.00 4.00 4.00 4.70 5.00 5.00 |
1.000 .500 1.000 2.000 3.000 .500 1.000 2.200 1.000 1.175 2.000 4.500 1.250 1.000 1.125 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 330.2 247.7 1219.2 1219.2 |
||
| FUSED
QUARTZ TUBING (QT) - Open both ends (OBE) by Inside Diameter 6 mm
to 9 mm Specify tubing length " * ". |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QT080060-* QT100060-* QT110060-* QT120060-* QT090070-* QT096070-* QT104070-* QT09.7507.75-* QT099079-* QT100080-* QT012080-* QT110090-* QT118090-* QT150090-* |
.3150 .3937 .4331 .4724 .3543 .3685 .4094 .3840 .3898 .3937 .4724 .4331 .4650 .5906 |
.2362 .2362 .2362 .2362 .2756 .2756 .2756 .3050 .3110 .3150 .3150 .3543 .3543 .3543 |
.0394 .0787 .0984 .1181 .0394 .0512 .0669 .0394 .0394 .0394 .0787 .0394 .0551 .0787 |
48 48 48 48 48 48 48 48 18 48 48 48 48 48 |
8.00 10.00 11.00 12.00 9.00 9.60 10.40 9.75 9.90 10.00 12.00 11.00 11.80 15.00 |
6.00 6.00 6.00 6.00 7.00 7.00 7.00 7.75 7.90 8.00 8.00 9.00 9.00 9.00 |
1.000 2.000 2.500 3.000 1.000 1.300 1.700 1.000 1.000 1.000 2.000 1.000 1.400 2.000 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 457.2 1219.2 1219.2 1219.2 1219.2 1219.2 |
||
| FUSED
QUARTZ TUBING (QT) - Open both ends (OBE) by Inside Diameter
10 mm to 15 mm Specify tubing length " * " |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QT120100-* QT140100-* QT12.7510.5-* QT130105-* QT130110-* QT140120-* QT150130-* QT158130-* QT162130-* QT190135-* QT160140-* QT170150-* QT180150-* |
.4724 .5512 .5020 .5118 .5118 .5512 .5906 .6220 .6378 .7480 .6299 .6693 .7087 |
.3937 .3937 .4134 .4134 .4331 .4724 .5118 .5118 .5118 .5315 .5512 .5906 .5906 |
.0394 .0787 .0443 .0492 .0394 .0394 .0394 .0551 .0630 .1083 .0394 .0394 .0591 |
48 48 48 48 48 48 48 48 48 48 48 48 48 |
12.00 14.00 12.75 13.00 13.00 14.00 15.00 15.80 16.20 19.00 16.00 17.00 18.00 |
10.00 10.00 10.50 10.50 11.00 12.00 13.00 13.00 13.00 13.50 14.00 15.00 15.00 |
1.000 2.000 1.125 1.250 1.000 1.000 1.000 1.400 1.600 2.750 1.000 1.000 1.500 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 |
||
| FUSED
QUARTZ TUBING (QT) - Open both ends (OBE) by Inside Diameter
16 mm to 25 mm Specify tubing length " * ". |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QT180160-* QT200160-* QT190170-* QT205180-* QT216180-* QT220200-* QT225200-* QT230200-* QT245220-* QT250220-* QT258220-* QT270250-* QT275250-* QT280250-* QT288250-* |
.7087 .7874 .7480 .8071 .8504 .8661 .8858 .9055 .9646 .9843 1.0157 1.0630 1.0827 1.1024 1.1339 |
.6299 .6299 .6693 .7087 .7087 .7874 .7874 .7874 .8661 .8671 .8671 .9843 .9843 .9843 .9843 |
.0394 .0787 .0394 .0492 .0709 .0394 .0492 .0591 .0492 .0591 .0748 .0394 .0492 .0591 .0748 |
48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 |
18.00 20.00 19.00 20.50 21.60 22.00 22.50 23.00 24.50 25.00 25.80 27.00 27.50 28.00 28.80 |
16.00 16.00 17.00 18.00 18.00 20.00 20.00 20.00 22.00 22.00 22.00 25.00 25.00 25.00 25.00 |
1.000 2.000 1.000 1.250 1.800 1.000 1.250 1.500 1.250 1.500 1.900 1.000 1.250 1.500 1.900 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 |
||
| FUSED
QUARTZ TUBING (QT) - Open both ends (OBE) by Inside Diameter
26 mm to 50 mm Specify tubing length " * ". |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QT300260-* QT300270-* QT320280-* QT330300-* QT340300-* QT360300-* QT350320-* QT380350-* QT400360-* QT400370-* QT421381-* QT430400-* QT440400-* QT450420-* QT480440-* QT480450-* QT500460-* QT500470-* QT520480-* QT540500-* QT550500-* |
1.1811 1.1811 1.2598 1.2992 1.3386 1.4173 1.3780 1.4961 1.5748 1.5748 1.6575 1.6929 1.7323 1.7717 1.8898 1.8898 1.9685 1.9685 2.0472 2.1260 2.1654 |
1.0236 1.0630 1.1024 1.1811 1.1811 1.1811 1.2598 1.3780 1.4173 1.4567 1.5000 1.5748 1.5748 1.6535 1.7323 1.7717 1.8110 1.8504 1.8898 1.9685 1.9685 |
.0787 .0591 .0787 .0591 .0787 .1181 .0591 .0591 .0787 .0591 .0787 .0591 .0787 .0591 .0787 .0591 .0787 .0591 .0787 .0787 .0984 |
48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 |
30.00 30.00 32.00 33.00 34.00 36.00 35.00 38.00 40.00 40.00 42.10 43.00 44.00 45.00 48.00 48.00 50.00 50.00 52.00 54.00 55.00 |
26.00 27.00 28.00 30.00 30.00 30.00 32.00 35.00 36.00 37.00 38.10 40.00 40.00 42.00 44.00 45.00 46.00 47.00 48.00 50.00 50.00 |
2.000 1.500 2.000 1.500 2.000 3.000 1.500 1.500 2.000 1.500 2.000 1.500 2.000 1.500 2.000 1.500 2.000 1.500 2.000 2.000 2.500 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 |
||
| FUSED
QUARTZ TUBING (QT) - Open both ends (OBE) by Inside Diameter
51 mm to 100 mm Specify tubing length " * ". |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QT580520-* QT570530-* QT590550-* QT610570-* QT640600-* QT650600-* QT670630-* QT680640-* QT690650-* QT700660-* QT740700-* QT750700-* QT770730-* QT800750-* QT850800-* QT900850-* QT950900-* QT1000950-* |
2.2835 2.2441 2.3228 2.4016 2.5197 2.5591 2.6378 2.6772 2.7165 2.7559 2.9134 2.9528 3.0315 3.1496 3.3465 3.5433 3.7402 3.9370 |
2.0472 2.0866 2.1654 2.2441 2.3622 2.3622 2.4803 2.5197 2.5591 2.5984 2.7559 2.7559 2.8740 2.9528 3.1496 3.3465 3.5433 3.7402 |
.1181 .0787 .0787 .0787 .0787 .0984 .0787 .0787 .0787 .0787 .0787 .0984 .0787 .0984 .0984 .0984 .0984 .0984 |
48 48 48 48 48 48 48 48 48 48 48 72 72 72 72 72 72 72 |
58.00 57.00 59.00 61.00 64.00 65.00 67.00 68.00 69.00 70.00 74.00 75.00 77.00 80.00 85.00 90.00 95.00 100.00 |
52.00 53.00 55.00 57.00 60.00 60.00 63.00 64.00 65.00 66.00 70.00 70.00 73.00 75.00 80.00 85.00 90.00 95.00 |
3.000 2.000 2.000 2.000 2.000 2.500 2.000 2.000 2.000 2.000 2.000 2.500 2.000 2.500 2.500 2.500 2.500 2.500 |
1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1219.2 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 |
||
| FUSED
QUARTZ TUBING (QT)-Open both ends (OBE) by Inside Diameter 101
mm to 170 mm Specify tubing length " * ". |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QT10661016-* QT11001050-* QT11501100-* QT12001150-* QT12501200-* QT13001250-* QT13501300-* QT13601300-* QT14101350-* QT14601400-* QT15101450-* QT15601500-* QT16101550-* QT16601600-* QT17101650-* QT17601700-* |
4.1969 4.3307 4.5276 4.7244 4.9213 5.1181 5.3150 5.3543 5.5512 5.7480 5.9449 6.1417 6.3386 6.5354 6.7323 6.9291 |
4.0000 4.1339 4.3307 4.5276 4.7244 4.9213 5.1181 5.1181 5.3150 5.5118 5.7087 5.9055 6.1024 6.2992 6.4961 6.6929 |
.0984 .0984 .0984 .0984 .0984 .0984 .0984 .0984 .1181 .1181 .1181 .1181 .1181 .1181 .1181 .1181 |
72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 |
106.60 110.00 115.00 120.00 125.00 130.00 135.00 136.00 141.00 146.00 151.00 156.00 161.00 166.00 171.00 176.00 |
101.60 105.00 110.00 115.00 120.00 125.00 130.00 130.00 135.00 140.00 145.00 150.00 155.00 160.00 165.00 170.00 |
2.500 2.500 2.500 2.500 2.500 2.500 2.500 2.500 3.000 3.000 3.000 3.000 3.000 3.000 3.000 3.000 |
1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 |
||
| FUSED
QUARTZ TUBING (QT)-Open both ends (OBE) by Inside Diameter 171mm
to 230mm Specify tubing length " * ". |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QT18401760-* QT18501780-* QT19001840-* QT19601900-* QT20101950-* QT20602000-* QT21102030-* QT21602080-* QT22102150-* QT22102110-* QT22102150-* QT22502150-* QT22602200-* QT22802200-* QT23002200-* QT22902210-* QT23502250-* QT23502270-* QT23602300-* |
7.2441 7.2835 7.4803 7.7165 7.9134 8.1102 8.3071 8.5039 8.7008 8.7008 8.8583 8.8976 8.9764 9.0551 9.0157 9.2520 9.2520 9.2913 9.4488 |
4.0000 7.0079 7.5120 7.4803 7.6772 7.8740 7.9921 8.1890 8.3071 8.4646 8.4646 8.6614 8.6614 8.6614 8.7008 8.8583 8.9370 9.0551 9.0551 |
.1575 .1378 .1181 .1181 .1181 .1181 .1575 .1575 .1969 .1181 .1969 .1181 .1575 .1969 .1575 .1969 .1575 .1181 .1969 |
72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 |
184.00 185.00 190.00 196.00 201.00 206.00 211.00 216.00 221.00 221.00 225.00 226.00 228.00 230.00 229.00 235.00 235.00 236.00 240.00 |
176.00 178.00 184.00 190.00 195.00 200.00 203.00 208.00 211.00 215.00 215.00 220.00 220.00 220.00 221.00 225.00 227.00 230.00 230.00 |
4.000 3.500 3.000 3.000 3.000 3.000 4.000 4.000 5.000 3.000 5.000 3.000 4.000 5.000 4.000 5.000 4.000 3.000 5.000 |
1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 |
||
| FUSED
QUARTZ TUBING (QT) - Open both ends (OBE) by Inside Diameter 231mm
to 320mm Specify tubing length " * ". |
| Part number | INCHES | MILLIMETERS | ||||||||
| OD | ID | Wall | Lengths up to | OD | ID | Wall | Lengths up to | |||
| QT24502350-* QT24602400-* QT24902410-* QT25102410-* QT25302450-* QT26002500-* QT26502570-* QT26702590-* QT26802600-* QT27502650-* QT28002700-* QT30002900-* QT30903000-* QT31503060-* QT33003200-* |
9.6457 9.6850 9.8031 9.8819 9.9606 10.2362 10.4331 10.5118 10.5512 10.8268 11.0236 11.8110 12.1654 12.4016 12.9921 |
9.2520 9.4488 9.4882 9.4882 9.6457 9.8435 10.1181 10.1969 10.2362 10.4331 10.6299 11.4173 11.7924 12.0472 12.5984 |
.1969 .1181 .1575 .1969 .1575 .1969 .1575 .1575 .1575 .1969 .1969 .1969 .1777 .1777 .1969 |
72 72 72 72 72 72 72 72 72 72 72 72 72 72 72 |
245.00 246.00 249.00 251.00 253.00 260.00 265.00 267.00 268.00 275.00 280.00 300.00 309.00 315.00 330.00 |
235.00 240.00 241.00 241.00 245.00 250.00 257.00 259.00 260.00 265.00 270.00 290.00 300.00 306.00 320.00 |
5.000 3.000 4.000 5.000 4.000 5.000 4.000 4.000 4.000 5.000 5.000 5.000 4.500 4.500 5.000 |
1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 1828.8 |
||
| © Copyright 2005 Arklay S. Richards Co., Inc. |
