Thermocouple Plugs and Jacks for use as shown below, Color coded, with the Plug pins and the Jack contacts made from thermocouple alloys (except Type B, R, and S which are made from compensating alloys).

Plugs with solid pins are mounted on thermocouple elements with compression type Tube Adaptors, either screw (TA) or insert (TAI) styles. They are available for 1/16" (1.6mm), 1/8" (3.2mm), 3/16" (4.8mm), 1/4" (6.4mm), 3/8" (9.5mm), and 1/2" (1.7mm) O. D. tubes. Standard Style Jacks can be clamped to insulated wire by using Cable Clamps (CL).

Standard Style Plugs and Jacks shown below are for wire gauges up to 20 (.81). For larger gauges (14, 11, or 8) use Jab Style. Thermocouple Plugs & Jacks for Tungsten 5% Rhenium vs. Tungsten 26% Rhenium (Type C) are also available.

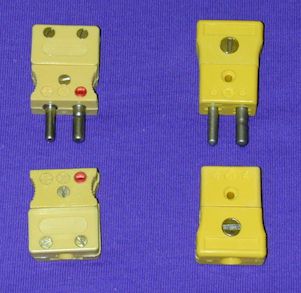

Note all plugs and jacks are available in two styles as shown below. Style "A" is Standard when purchased separately. Style "B" is standard on thermocouple assemblies. Style "B" can be purchased separately by adding a small "b" to the front of the item number.        Example: K1b

            Style "A"                       Style "B"



Standard Style Plug                                                                                   -For 20 gauge (.81) or smaller.                     -For use to 175º C (350º F).                     -Solid Round Polarized Pins.

Part  Number	Type	Plug Construction
		Color	Height		Width		Length
			Inch	mm	Inch	mm	Inch	mm
B1 E1 J1 K1 N1 RS1 RS1 T1	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	White Purple Black Yellow Orange Green Green Blue	.50	12.7	1.00	25.4	1.88	47.6



Standard Style Jack                                                                                                                                                                         -For 20 gauge (.81) or smaller.                            -For use to 175º C (350º F).

Part   Number	Type	Jack Construction
		Color	Height		Width		Length
			Inch	mm	Inch	mm	Inch	mm
B2 E2 J2 K2 N2 RS2 RS2 T2	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	White Purple Black Yellow Orange Green Green Blue	.50	12.7	1.00	25.4	1.25	31.8

Back To Top

High Temperature (HT) Plug                                                                                                                                                   -For 20 gauge (.81) or smaller.                          -For use to 260º C (500º F).                          -Solid Round Polarized Pins.

Part   Number	Type	Plug Construction
		Color	Height		Width		Length
			Inch	mm	Inch	mm	Inch	mm
B1-HT E1-HT J1-HT K1-HT N1-HT RS1-HT RS1-HT T1-HT	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	Brown	.50	12.7	1.00	25.4	1.88	47.6



High Temperature (HT) Jack                                                                                -For 20 gauge (.81) or smaller.                  -For use to 260º C (500º F).

Part   Number	Type	Jack Construction
		Color	Height		Width		Length
			Inch	mm	Inch	mm	Inch	mm
B2-HT E2-HT J2-HT K2-HT N2-HT RS2-HT RS2-HT T2-HT	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	Brown	.50	12.7	1.00	25.4	1.25	31.8

Back To Top

Ultra-High Temperature (UH) Plug                                                                                                              -For 20 gauge (.81) or smaller.                                   -For use to 538º C (1000º F).                                   -Solid Round Polarized Pins.                                   -White Ceramic Body

Part   Number	Type	Plug Construction
		Color Dot	Height		Width		Length
			Inch	mm	Inch	mm	Inch	mm
E1-UT J1-UT K1-UT RS1-UT RS1-UT	E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium	Purple Black Yellow Green Green	.51	13.0	1.06	26.9	1.88	47.6



Ultra-High Temperature (UH) Jack                                                                                                                      -For 20 gauge (.81) or smaller.                                    -For use to 538º C (1000º F).                                    -White Ceramic Body

Part   Number	Type	Jack Construction
		Color Dot	Height		Width		Length
			Inch	mm	Inch	mm	Inch	mm
E2-UT J2-UT K2-UT RS2-UT RS2-UT	E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium	Purple Black Yellow Green Green	.51	13.0	1.06	26.9	1.32	33.5

Back To Top

Jab Style Plug                                                                -For 20 gauge (.81) to 14 gauge (1.63mm).                                -For use to 175º C (350º F).                                -Solid Round Polarized Pins.

Part   Number	Type	Plug Construction
		Color	Height		Width		Length
			Inch	mm	Inch	mm	Inch	mm
B4 E4 J4 K4 N4 RS4 RS4 T4	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	White Purple Black Yellow Orange Green Green Blue	.50	12.7	1.00	25.4	1.88	47.6



Jab Style Jack                                                                                                                                                          -For 20 gauge (.81) to 14 gauge (1.63mm).                                        -For use to 175º C (350º F).

Part   Number	Type	Jack Construction
		Color	Height		Width		Length
			Inch	mm	Inch	mm	Inch	mm
B5 E5 J5 K5 N5 RS5 RS5 T5	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	White Purple Black Yellow Orange Green Green Blue	.50	12.7	1.00	25.4	1.25	31.8

Back To Top

Jab Style Plug                                                     -For 14 gauge (.1.63mm) to 8 gauge (3.25mm).                             -For use to 175º C (350º F).                             -Solid Round Polarized Pins.

Part   Number	Type	Plug Construction
		Color	Height		Width		Length
			Inch	mm	Inch	mm	Inch	mm
B7 E7 J7 K7 N7 RS7 RS7 T7	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	White Purple Black Yellow Orange Green Green Blue	.50	12.7	1.00	25.4	1.88	47.6



Jab Style Jack                                                                                                                -For 14 gauge (.1.63mm) to 8 gauge (3.25mm).                               -For use to 175º C (350º F).

Part   Number	Type	Jack Construction
		Color	Height		Width		Length
			Inch	mm	Inch	mm	Inch	mm
B8 E8 J8 K8 N8 RS8 RS8 T8	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	White Purple Black Yellow Orange Green Green Blue	.50	12.7	1.00	25.4	1.25	31.8

Back To Top

Standard Style Panel Mount (PM) Plug                                                                                                    -For 20 gauge (.81) or smaller.                                   -For use to 175º C (350º F).                                   -Solid Round Polarized Pins.

Part   Number	Type	Plug Construction
		Color	Height		Width		Length
			Inch	mm	Inch	mm	Inch	mm
B1-PM E1-PM J1-PM K1-PM N1-PM RS1-PM RS1-PM T1-PM	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	White Purple Black Yellow Orange Green Green Blue	.50	12.7	1.69	42.9	1.88	47.6



Standard Style Panel Mount (PM) Jack                                                                                                              - For 20 gauge (.81) or smaller.                           - For use to 175º C (350º F).

Part   Number	Type	Jack Construction
		Color	Height		Width		Length
			Inch	mm	Inch	mm	Inch	mm
B2-PM E2-PM J2-PM K2-PM N2-PM RS2-PM RS2-PM T2-PM	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	White Purple Black Yellow Orange Green Green Blue	.50	12.7	1.69	42.9	1.25	31.8

Back To Top

Jab Style Panel Mount (PM) Plug                                                                                                                     -For 20 gauge (.81) to 14 gauge (1.63mm).                                 -For use to 175º C (350º F).                                 -Solid Round Polarized Pins.

Part   Number	Type	Plug Construction
		Color	Height		Width		Length
			Inch	mm	Inch	mm	Inch	mm
B4-PM E4-PM J4-PM K4-PM N4-PM RS4-PM RS4-PM T4-PM	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	White Purple Black Yellow Orange Green Green Blue	.50	12.7	1.69	42.9	1.88	47.6



Jab Style Panel Mount (PM) Jack                                                                                                                      -For 20 gauge (.81) to 14 gauge (1.63mm).                               -For use to 175º C (350º F).

Part   Number	Type	Jack Construction
		Color	Height		Width		Length
			Inch	mm	Inch	mm	Inch	mm
B5-PM E5-PM J5-PM K5-PM N5-PM RS5-PM RS5-PM T5-PM	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	White Purple Black Yellow Orange Green Green Blue	.50	12.7	1.69	42.9	1.25	31.8

Back To Top

Jab Style Panel Mount (PM) Plug                                                                                                                       -For 14 gauge (.1.63mm) to 8 gauge (3.25mm).                                 -For use to 175º C (350º F).                                 -Solid Round Polarized Pins.

Part   Number	Type	Plug Construction
		Color	Height		Width		Length
			Inch	mm	Inch	mm	Inch	mm
B7-PM E7-PM J7-PM K7-PM N7-PM RS7-PM RS7-PM T7-PM	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	White Purple Black Yellow Orange Green Green Blue	.50	12.7	1.69	42.9	1.88	47.6



Jab Style Panel Mount (PM) Jack                                                                                                                         -For 14 gauge (.1.63mm) to 8 gauge (3.25mm).                                -For use to 175º C (350º F).

Part   Number	Type	Jack Construction
		Color	Height		Width		Length
			Inch	mm	Inch	mm	Inch	mm
B8-PM E8-PM J8-PM K8-PM N8-PM RS8-PM RS8-PM T8-PM	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	White Purple Black Yellow Orange Green Green Blue	.50	12.7	1.69	42.9	1.25	31.8

Back To Top

Standard Style Round Panel Mount (RPM) Plug                                                                                                                        -For 20 gauge (.81) or smaller.                                   -For use to 175º C (350º F).                                   -Solid Round Polarized Pins.

Part   Number	Type	Plug Construction
		Color	Height		Diameter		Length
			Inch	mm	Inch	mm	Inch	mm
B1-RPM E1-RPM J1-RPM K1-RPM N1-RPM RS1-RPM RS1-RPM T1-RPM	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	White Purple Black Yellow Orange Green Green Blue	.50	12.7	1.50	38.1	1.88	47.6



Standard Style Round Panel Mount (RPM) Jack                                                                                      -For 20 gauge (.81) or smaller.                               -For use to 175º C (350º F).

Part   Number	Type	Jack Construction
		Color	Height		Diameter		Length
			Inch	mm	Inch	mm	Inch	mm
B2-RPM E2-RPM J2-RPM K2-RPM N2-RPM RS2-RPM RS2-RPM T2-RPM	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	White Purple Black Yellow Orange Green Green Blue	.50	12.7	1.50	38.1	1.30	33.0

Back To Top

Subminiature Plug                                                                            -For 20 gauge (.81) or smaller.                               -For use to 175º C (350º F).                               -Solid flat Polarized Pins.

Part   Number	Type	Plug Construction
		Color	Height		Width		Length
			Inch	mm	Inch	mm	Inch	mm
BM1 EM1 JM1 KM1 NM1 RSM1 RSM1 TM1	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	White Purple Black Yellow Orange Green Green Blue	.32	8.1	.73	18.5	1.50	38.1



Subminiature Jack                                  -For 20 gauge (.81) or smaller.                         -For use to 175º C (350º F).

Part   Number	Type	Jack Construction
		Color	Height		Width		Length
			Inch	mm	Inch	mm	Inch	mm
BM2 EM2 JM2 KM2 NM2 RSM2 RSM2 TM2	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	White Purple Black Yellow Orange Green Green Blue	.32	8.1	.73	18.5	1.00	25.4

Back To Top

Subminiature Panel Mount (PM) Plug                                                                                                                                            -For 20 gauge (.81) or smaller.                                        -For use to 175º C (350º F).                                        -Solid flat Polarized Pins.

Part   Number	Type	Plug Construction
		Color	Height		Width		Length
			Inch	mm	Inch	mm	Inch	mm
BM1-PM EM1-PM JM1-PM KM1-PM NM1-PM RSM1-PM RSM1-PM TM1-PM	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	White Purple Black Yellow Orange Green Green Blue	.32	8.1	1.10	27.9	1.50	38.1



Subminiature Panel Mount (PM) Jack                                                           -For 20 gauge (.81) or smaller.                          -For use to 175º C (350º F).

Part   Number	Type	Jack Construction
		Color	Height		Width		Length
			Inch	mm	Inch	mm	Inch	mm
BM2-PM EM2-PM JM2-PM KM2-PM NM2-PM RSM2-PM RSM2-PM TM2-PM	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	White Purple Black Yellow Orange Green Green Blue	.32	8.1	1.10	27.9	1.20	25.4

Back To Top

Subminiature Round Panel Mount (RPM) Plug                                                                 -For 20 gauge (.81) or smaller.                                 -For use to 175º C (350º F).                                 -Solid flat Polarized Pins.

Part   Number	Type	Plug Construction
		Color	Height		Diameter		Length
			Inch	mm	Inch	mm	Inch	mm
BM1-RPM EM1-RPM JM1-RPM KM1-RPM NM1-RPM RSM1-RPM RSM1-RPM TM1-RPM	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	White Purple Black Yellow Orange Green Green Blue	.32	8.1	1.50	38.1	1.50	38.1



Subminiature Round Panel Mount (RPM) Jack                                                                        -For 20 gauge (.81) or smaller.                                         -For use to 175º C (350º F).

Part   Number	Type	Jack Construction
		Color	Height		Diameter		Length
			Inch	mm	Inch	mm	Inch	mm
BM2-RPM EM2-RPM JM2-RPM KM2-RPM NM2-RPM RSM2-RPM RSM2-RPM TM2-RPM	B    Uncompensated  E    Chromel-Constantan  J     Iron-Constantan  K    Chromel-Alumel  N    Nicrosil-Nisil  R    Platinum-Platinum/13% Rhodium  S    Platinum-Platinum/10% Rhodium  T     Copper-Constantan	White Purple Black Yellow Orange Green Green Blue	.32	8.1	1.50	38.1	1.20	25.4

Back To Top
