Thermocouple connection heads are available in a variety of materials and configurations. Our more common styles are shown below. If you are looking for a particular type, which is not shown here, please phone one of our sales engineers since we carry other heads in stock. All thermocouple connection heads are sold with connector blocks. If you would like to order them without blocks, add a -WOC to the end of the part number. NEMA ratings are also shown for each head.
Click Here for Connector blocks page.
Part Number Key
Standard

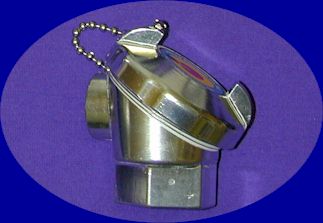

Die Cast Aluminum Heads-Screw Cap & Chain (Blocks included)
|
||||
Catalog Number | Terminal Pairs | Process Opening | Conduit Opening | Dimensions |
SHS16 | Single | 1" NPT | 3/4" NPT | Height 3 1/2" Width 3 1/4" Cap Diameter 3 1/4" |
SHS12 | Single | 3/4" NPT | 3/4" NPT | |
SHS08 | Single | 1/2" NPT | 3/4" NPT | |
SHS02 | Single | 1/8" NPT | 3/4" NPT | |
SHD16 | Double | 1" NPT | 3/4" NPT | |
SHD12 | Double | 3/4" NPT | 3/4" NPT | |
SHD08 | Double | 1/2" NPT | 3/4" NPT | |
SHD02 | Double | 1/8" NPT | 3/4" NPT | |
SHT16 | Triple | 1" NPT | 3/4" NPT | |
SHT12 | Triple | 3/4" NPT | 3/4" NPT | |
SHT08 | Triple | 1/2" NPT | 3/4" NPT | |
SHT02 | Triple | 1/8" NPT | 3/4" NPT |
316L

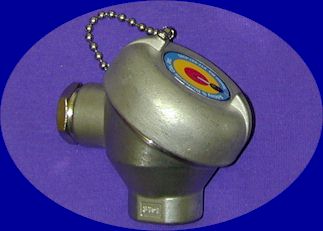

Stainless Steel Heads-Screw Cap & Chain (Blocks included) |
||||
Catalog Number | Terminal Pairs | Process Opening | Conduit Opening | Dimensions |
SSHS12 | Single | 3/4" NPT | 3/4" NPT | Height 3 1/2" Width 3/1/4" Cap Diameter 3 1/16" (77.8mm) |
SSHS08 | Single | 1/2" NPT | 3/4" NPT | |
SSHD12 | Double | 3/4" NPT | 3/4" NPT | |
SSHD08 | Double | 1/2" NPT | 3/4" NPT | |
SSHT12 | Triple | 3/4" NPT | 3/4" NPT | |
SSHT08 | Triple | 1/2" NPT | 3/4" NPT |
Die
Cast Aluminum Heads-Screw Cap & Chain (Blocks included) |
||||
Catalog Number | Terminal Pairs | Process Opening | Conduit Opening | Dimensions |
AWHS16 | Single | 1" NPT | 3/4" NPT | Height 3 3/16 in. (81.0mm) Width 2 15/16" (74.6mm) Cap Diameter 3 1/16" (77.8mm) |
AWHS12 | Single | 3/4" NPT | 3/4" NPT | |
AWHS08 | Single | 1/2" NPT | 3/4" NPT | |
AWHS02 | Single | 1/8" NPT | 3/4" NPT | |
AWHD16 | Double | 1" NPT | 3/4" NPT | |
AWHD12 | Double | 3/4" NPT | 3/4" NPT | |
AWHD08 | Double | 1/2" NPT | 3/4" NPT | |
AWHD02 | Double | 1/8" NPT | 3/4" NPT | |
AWHT16 | Triple | 1" NPT | 3/4" NPT | |
AWHT12 | Triple | 3/4" NPT | 3/4" NPT | |
AWHT08 | Triple | 1/2" NPT | 3/4" NPT | |
AWHT02 | Triple | 1/8" NPT | 3/4" NPT | |
AWHTR16 | Triple | 1" NPT | 3/4" NPT | |
AWHTR12 | Triple | 3/4" NPT | 3/4" NPT | |
AWHTR08 | Triple | 1/2" NPT | 3/4" NPT | |
AWHTR02 | Triple | 1/8" NPT | 3/4" NPT |
Aluminum
General Purpose Heads-Cap attached & screws (Blocks included) |
||||
Catalog Number | Terminal Pairs | Process Opening | Conduit Opening | Dimensions |
AHS12 | Single | 3/4" NPT | 1/2" NPT | Height 2 3/4 in. (69.9 mm) Width 2 15/16" (74.6mm) Cap Diameter 3 1/16" (77.8mm) |
AHS08 | Single | 1/2" NPT | 1/2" NPT | |
AHS02 | Single | 1/8" NPT | 1/2" NPT | |
AHD12 | Double | 3/4" NPT | 1/2" NPT | |
AHD08 | Double | 1/2" NPT | 1/2" NPT | |
AHD02 | Double | 1/8" NPT | 1/2" NPT |
Die Cast Aluminum Heads-Screw Cap & Chain
(Blocks included) |
||||
Catalog Number | Terminal Pairs | Process Opening | Conduit Opening | Dimensions |
ACHS08 | Single | 1/2" NPT | 3/4" NPT | Height 3 1/16 in. (81.0 mm) Width 2 15/16" (74.6mm) Cap Diameter 3 1/16" (77.8mm) |
ACHD08 | Double | 1/2" NPT | 3/4" NPT | |
ACHT08 | Triple | 1/2" NPT | 3/4" NPT |

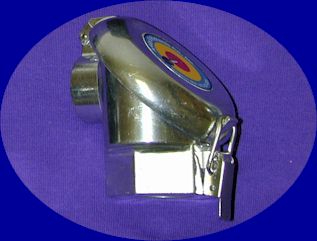

Aluminum Flip Top Heads-(Blocks included) |
||||
Catalog Number | Terminal Pairs | Process Opening | Conduit Opening | Dimensions |
AFTHS16 | Single | 1" NPT | 3/4" NPT | Height 3 1/2" Width 3 1/4" Cap Diameter 3 1/16" (77.8mm) |
AFTHS12 | Single | 3/4" NPT | 3/4" NPT | |
AFTHS08 | Single | 1/2" NPT | 3/4" NPT | |
AFTHS02 | Single | 1/8" NPT | 3/4" NPT | |
AFTHD16 | Double | 1" NPT | 3/4" NPT | |
AFTHD12 | Double | 3/4" NPT | 3/4" NPT | |
AFTHD08 | Double | 1/2" NPT | 3/4" NPT | |
AFTHD02 | Double | 1/8" NPT | 3/4" NPT | |
AFTHT16 | Triple | 1" NPT | 3/4" NPT | |
AFTHT12 | Triple | 3/4" NPT | 3/4" NPT | |
AFHT08 | Triple | 1/2" NPT | 3/4" NPT | |
AFHT02 | Triple | 1/8" NPT | 3/4" NPT |
Aluminum Miniature Heads-Screw cover & Chain
(Blocks included) |
||||
Catalog Number | Terminal Pairs | Process Opening | Conduit Opening | Dimensions |
AMHS08 | Single | 1/2" NPT | 3/4" NPT | Height 2 3/4 in. (69.9 mm) Width 2 15/16" (74.6mm) Cap Diameter 3 1/16" (77.8mm) |
AMHD08 | Double | 1/2" NPT | 3/4" NPT |
Small Aluminum Weatherproof Heads-Twist cover (Blocks included)
|
||||
Catalog Number | Terminal Pairs | Process Opening | Conduit Opening | Dimensions |
WHS08 | Single | 1/2" NPT | 1/2" NPT | Height 3.0 in. (76.2 mm) OD 2.8" (71.1mm) Weight |
WHD08 | Double | 1/2" NPT | 1/2" NPT |
Large Aluminum Weatherproof Heads-Twist cover (Blocks included) |
||||
Catalog Number | Terminal Pairs | Process Opening | Conduit Opening | Dimensions |
WHS12 | Single | 3/4" NPT | 1/2" NPT | Height 3.63 in. (92.2 mm) OD 3.88" (98.5 mm) Weight 15.75 |
WHD12 | Double | 3/4" NPT | 1/2" NPT |

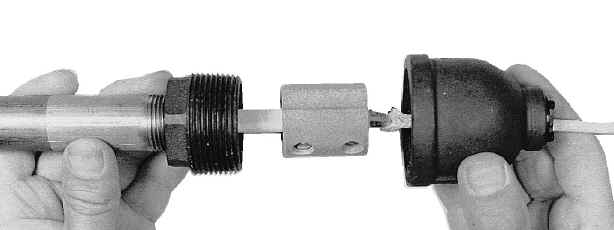

Screw Cover Heads-Twist cover (2158 connector included) | ||||
Catalog Number | Terminal Pairs | Process Opening | Conduit Opening | Dimensions |
H16 | Single | 1" NPT | Not Used | Height 2.5 in. (63.5 mm) OD 2.5" (63.5 mm) Weight 1.4 Lbs |
H12 | Single | 3/4" NPT | Not Used | |
H08 | Single | 1/2" NPT | Not Used |
Cast Iron Heads-Screw cap & chain, Painted (Blocks included)
|
||||
Catalog Number | Terminal Pairs | Process Opening | Conduit Opening | Dimensions |
CIHS16 | Single | 1" NPT | 3/4" NPT | Height 3 1/2" Width 3 1/4" Weight 1.85 Lbs |
CIHS12 | Single | 3/4" NPT | 3/4" NPT | |
CIHS08 | Single | 1/2" NPT | 3/4" NPT | |
CIHD16 | Double | 1" NPT | 3/4" NPT | |
CIHD12 | Double | 3/4" NPT | 3/4" NPT | |
CIHD08 | Double | 1/2" NPT | 3/4" NPT | |
CIHT16 | Triple | 1" NPT | 3/4" NPT | |
CIHT12 | Triple | 3/4" NPT | 3/4" NPT | |
CIHT08 | Triple | 1/2" NPT | 3/4" NPT |

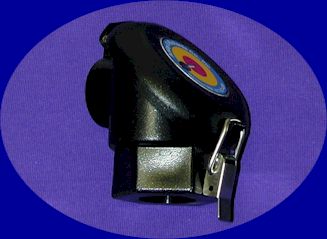

Polypropylene (Black) Flip Top Heads- (Blocks included) |
||||
Catalog Number | Terminal Pairs | Process Opening | Conduit Opening | Dimensions |
BFTHS12 | Single | 3/4" NPT | 3/4" NPT | Height 3 1/2" Width 3 1/4" Cap Diameter 3 1/16" (77.8mm) |
BFTHS08 | Single | 1/2" NPT | 3/4" NPT | |
BFTHS02 | Single | 1/8" NPT | 3/4" NPT | |
BFTHD12 | Double | 3/4" NPT | 3/4" NPT | |
BFTHD08 | Double | 1/2" NPT | 3/4" NPT | |
BFTHD02 | Double | 1/8" NPT | 3/4" NPT | |
BFTHT12 | Triple | 3/4" NPT | 3/4" NPT | |
BFTHT08 | Triple | 1/2" NPT | 3/4" NPT | |
BFTHT02 | Triple | 1/8" NPT | 3/4" NPT |
Polypropylene (FDA approved white) Flip Top Heads- (Blocks included)
|
||||
Catalog Number | Terminal Pairs | Process Opening | Conduit Opening | Dimensions |
WFTHS12 | Single | 3/4" NPT | 3/4" NPT | Height 3 3/16 in. (81.0mm) Width 2 15/16" (74.6mm) Cap Diameter 3 1/16" (77.8mm) |
WFTHS08 | Single | 1/2" NPT | 3/4" NPT | |
WFTHS02 | Single | 1/8" NPT | 3/4" NPT | |
WFTHD12 | Double | 3/4" NPT | 3/4" NPT | |
WFTHD08 | Double | 1/2" NPT | 3/4" NPT | |
WFTHD02 | Double | 1/8" NPT | 3/4" NPT | |
WFTHT12 | Triple | 3/4" NPT | 3/4" NPT | |
WFTHT08 | Triple | 1/2" NPT | 3/4" NPT | |
WFTHT02 | Triple | 1/8" NPT | 3/4" NPT |
Iron Heads-Screw cap & chain (Blocks included) |
||||
Catalog Number | Terminal Pairs | Process Opening | Conduit Opening | Dimensions |
IHS08 | Single | 1/2" NPT | 3/4" NPT | Height 3.75 in. (95.3 mm) OD 3.38" (95.3 mm) |
IHS08 | Double | 1/2" NPT | 3/4" NPT | |
IHT08 | Triple | 1/2" NPT | 3/4" NPT |
General Purpose Cast Iron Heads-Steel cover (Blocks included)
|
||||
Catalog Number | Terminal Pairs | Process Opening | Conduit Opening | Dimensions |
GPH16 | Single | 1" NPT | 1/2" NPT | Height 1.5 in. (38.1 mm) OD 1.38" (34.9 mm) Weight 3.0 oz |
GPH12 | Single | 3/4" NPT | 1/2" NPT | |
GPH08 | Single | 1/2" NPT | 1/2" NPT |
Nylon Heads- Screw Cover (Blocks included)
|
||||
Catalog Number | Terminal Pairs | Process Opening | Conduit Opening | Dimensions |
NHS | Single | 1/2" NPT | 1/2" NPT | Height 3.0 in. (76.2 mm) OD 2.8" (71.1 mm) Weight 3.9 oz |
NHD | Double | 1/2" NPT | 1/2" NPT |
Miniature Steel Heads- (Blocks included) |
||||
Catalog Number | Terminals | Process Opening | Conduit Opening | Dimensions |
MSH202 | Two | 1/8" NPT | Grommet or 5/16" Compression Fitting |
Height 2 1/4 in. (57.2 mm) OD 1 1/8" (28.6 mm) |
MSH204 | Two | 1/4" NPT | ||
MSH302 | Three | 1/8" NPT | ||
MSH304 | Three | 1/4" NPT | ||
MSH402 | Four | 1/8" NPT | ||
MSH404 | Four | 1/4" NPT |
Explosion Resistant Head-Screw cover (Terminal Strip not included)
|
||||
Catalog Number | Terminal Pairs | Process Opening | Conduit Opening | Dimensions |
EXS1212 | Single | 3/4" NPT | 3/4" NPT | Height 2 3/4 in. (69.9 mm) Width 2 15/16" (74.6mm) Cap Diameter 3 1/16" (77.8mm) |
EXD1212 | Double | 3/4" NPT | 3/4" NPT |
If you do not see a particular head in our site please contact one of our
sales staff. We
carry a variety of heads which are not shown here. Click Here
for Connector blocks page.
