Digital Temperature Instruments

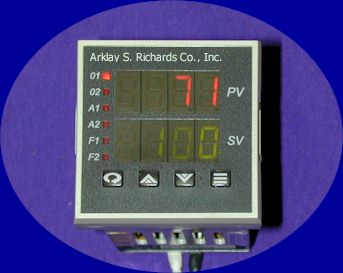

  XT16 Series 1/16 DIN Panel Mount Process Controller

Specifications

• Thermocouple- K, J, N, R, T, S, & Platinel II ®. Maximum lead resistance, 100 ohms for rated accuracy
• RTD- Platinum, 3-wire, 100 ohms at 0°C, DIN curve standard (0.000385)
• Linear-Current and voltage (refer to ordering code)

Panel Cutout Size & Case Dimensions

• Cut panel opening to 1.77" (45mm) x 1.77" (45mm)
• Face Bezel is 2.100" (53.3mm) x 2.100" (53.3mm)
• Instrument length is 4.654" (118.21mm)
• Instrument length less bezel is 3.937" (100mm)
• Case foot print is 1.750" (44.5mm) x 1.750" (44.5mm) square

Output Options

• #1 reverse-acting
• #2 Direct-acting
• B= Relay 5 A @ 120 Vac, 3 A @ 240 Vac
• F= 4-20 mA, 500 ohms max.
• S= 20 Vdc pulsed
• T= SSR, 120/24- Vac, zero voltage switched, 1 A continuous, 10 A surge @ 25°C
• Alarms are optically isolated triac, rated 1 A, 120/240 Vac @ 25°C DC-20 mA sink or 24 V supply

Performance

• Accuracy-                        ±0.2% of FS, ± one digit
• Setpoint Resolution-         1 count/0.1 count
• Repeatability-                  ±1.0 count
• Temperature Stability-      5 µV/°C maximum
• TC Cold End Tracking-      0.05°C/°C ambient
• Noise Rejection-              Common mode > 100 dB, Series mode > 70 dB
• Process Sampling-           10 Hz (100 ms)

Linear Input-Type L1 to L7 (Refer to Ordering Codes)

• Engineering Units-             Scalable, -1999 to 9999
• Digital Filtering-                 0.1, 1.0, or 10 sec
• Decimal Position-              Selectable, none, 1/10, or 1/100

Control Characteristics

• Set point Limits-                 Limited to configured range of TC and RTD
• Alarms-                             Adjustable for high/low; selectable process or deviation
• Rate-                                0 to 900 sec
• Reset-                              0 to 3600 sec
• Cycle time-                        0.2 to 120 sec
• Gain-                                0 to 400
• Gain Ratio-                        0 to 2.0 (in 0.1 increments)
• Control Hysteresis-             1 to 100 (on/off configuration)
• Spread (Output 2)-             0 to 100 (above set point)
• Ramp to Set point-             1 to 100 minutes
• Auto tune-                         Operator-initiated from front panel
• Manual Control-                  Operator-initiated from front panel

General

• Line Voltage-                      115 to 230 V ± 10%, 50/60 Hz
• Display-                             Dual, 4-digit, 9.2 mm, Process: orange Manual Parameter: green
• Power Consumption-           Less than 6 VA (instrument)
• Weight-                             > 8 oz (227 g)
• Front Panel Rating-             NEMA 4X
• Operating Temp-                32° to 131°F (0° to 55°C)
• Humidity Tolerance-            90% R. H. maximum, non-condensing
• Memory Protection-             Solid-state, non-volatile memory
• Connections-                      input and output via barrier strip, with locking terminals
• Contacts-                           Twin bifurcated, double-wipe



Ordering Information

Example-XT16KFB000

Model XT16		KF	B	0	00
Input Type K K J J N N R R T T S S Platinell II Platinell II 100 ohm RTD 100 ohm RTD 100 ohm RTD 100 ohm RTD 1 to 5 V 0 to 5 V 10 to 50 mV 0 to 50 mV 4 to 20 mA* 0 to 20 mA* 0 to 10 Vdc	Range 0 to 2460°F 0 to 1300°C 0 to 1400°F 0 to 750°C 0 to 2370°F 0 to 1300°C 0 to 3200°F 0 to 1750°C -200 to 600°F -100 to 300°C 0 to 3200°F 0 to 1750°C 0 to 2372°F -18 to 1300°C -328 to 1562°F -200 to 850°C -199 to 450°F -100 to 225°C Scalable Scalable Scalable Scalable Scalable Scalable Scalable	Code KF KC JF JC NF NC RF RC TF TC SF SC LF LC PF PC DF DC L1 L4 L2 L5 L3 L6 L7	Output 1 Code 0=None B=Relay, 3 A/5 A F=4-20 mA S=Pulsed 20 Vdc T=S.S. Relay, 1A E=0-20 mA	Output 2 Code 0=None B=Relay, 3 A/5 A F=4-20 mA S=Pulsed 20 Vdc T=S.S. Relay, 1A E=0-20 mA Y=NC contacts,  "B" relay, 3 A/5 A	Dual Alarm Options 10=S.S. Relay 20=Floating Transistor open collector switch Communications 30=RS232 31=RS485 Remote Setpoint Select (w/alarm) 40=Switch close 41=Switch open 42=5 Volt input Transducer Excitation @ 22 mA 50=10 Vdc 51=12 Vdc 52=15 Vdc

Other instruments are in stock.  Contact us for more information.
