Thermocouple connector blocks are mounted inside of the thermocouple connection head. These blocks are used to connect the thermocouple element wires to the extension wire which will then run to the instrument. Connector blocks are usually ceramic in construction but materials other materials can be provided. Check the connection head page to find out which blocks can be used in each type of head.
Click Here For Connection Heads page.

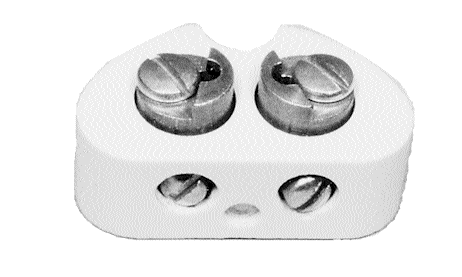

AWTS Single Oval Ceramic Connector Block |
||
Length | Width | Thickness |
2" or 50.8mm | 1 7/16" or 36.5mm | 11/16" or 1.75mm |
AWTD Duplex
Oval Ceramic Connector Block |
||
Length | Width | Thickness |
2" or 50.8mm | 1 7/16" or 36.5mm | 1 5/32" or 29.4mm |
AWTT Triplex Oval Ceramic Connector Block |
||
Length | Width | Thickness |
2" or 50.8mm | 1 7/16" or 36.5mm | 7/8" or 22.2mm |
AWTTR Triplex Oval Ceramic Connector
Block |
||
Length | Width | Thickness |
2" or 50.8mm | 1 7/16" or 36.5mm | 1/2" or 12.7mm |
ATS Single General Purpose Ceramic Connector
Block |
||
Length | Width | Thickness |
1 3/4" or 44.5mm | 15/16" or 23.8mm | 13/16" or 20.6mm |
ATD Duplex General Purpose Ceramic Connector
Block |
||
Length | Width | Thickness |
1 11/16" or 42.9mm | 15/16" or 23.8mm | 11/16" or 17.5mm |
ACTS Single Ceramic Connector Block |
|
Length | Width |
1 7/8" or 47.6mm | 1 9/16" or 39.7mm |
ACTD Duplex Ceramic Connector Block |
|
Length | Width |
1 7/8" or 47.6mm | 1 9/16" or 39.7mm |
ACTT Triplex Ceramic Connector Block |
|
Length | Width |
1 7/8" or 47.6mm | 1 9/16" or 39.7mm |
AMTS Single
Mini Head Ceramic Connector Block |
|
Length | Width |
7/8" or 22.2mm | 1 5/16" or 33.3mm |
AMTD Duplex Mini Head Ceramic Connector
Block |
|
Length | Width |
7/8" or 22.2mm | 1 5/16" or 33.3mm |
2158 Richards Single Cement Connector
Block |
||
Height | O. D. | Weight |
1.5" or 38.1mm | 1.38" or 34.9mm | 3 oz or 85.0 g |
WTS08 DIN Size Single Ceramic Connector
Block |
||
Length | O. D. | Weight |
.56" or 14.2mm | 1.56" or 39.6mm | 1.75 oz or 49.6 g |
WTD08 DIN Size Duplex Ceramic Connector
Block |
||
Length | O. D. | Weight |
.56" or 14.2mm | 1.56" or 39.6mm | 1.75 oz or 49.6 g |
MT-2 Miniature Single Two Wire Ceramic
Connector Block |
|
Height | O. D. |
1 3/4" or 44.5mm | 1 1/8" or 28.6mm |
MT-3 Miniature Single Three Wire Ceramic
Connector Block |
|
Height | O. D. |
1 3/4" or 44.5mm | 1 1/8" or 28.6mm |
MT-4 Miniature Single Four Wire Ceramic
Connector Block |
|
Height | O. D. |
1 3/4" or 44.5mm | 1 1/8" or 28.6mm |
GPT General Purpose Single Ceramic Connector
Block |
||
Height | O. D. | Weight |
1.50" or 38.1mm | 1.38" or 34.9mm | 3 oz or 85.0 g |
